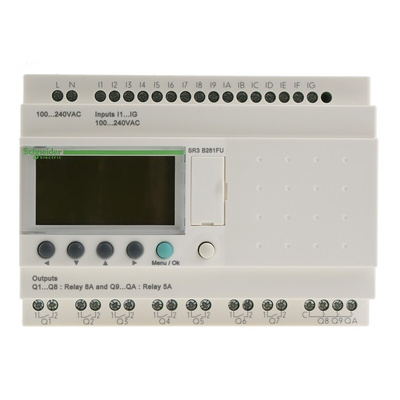

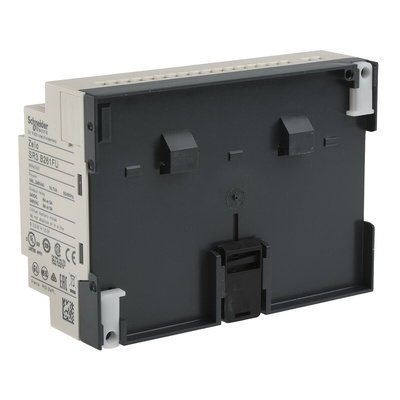

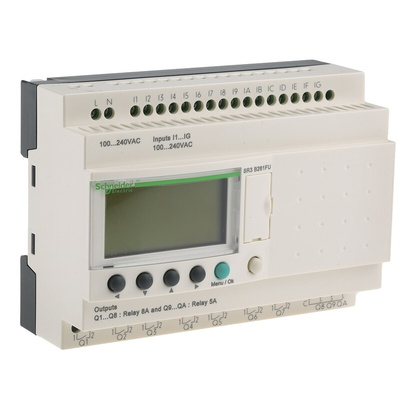

SR3B261FU, Schneider Electric Zelio Logic Series Logic Module, 100 → 240 V ac Supply, Relay Output, 16-Input, Discrete Input, Логический модуль

Schneider Electric Logic Module, 16 Inputs, 10 Outputs - Zelio Logic Series - SR3B261FU

Control your automation system with this logic module from Schneider Electric. The smart relay offers 16 inputs and 10 outputs, to cater for a wide range of automation needs. This makes it ideally suited to commercial and industrial uses, such as controlling production equipment and assembly machinery. Programming your systems can be done in two popular languages to suit your needs. Both Ladder logic and FBD (function block diagram) are available with additional guidance also offered through free Zelio Logic software.

Features & Benefits

• Programmable via interface onsite or through a PC for your convenience
• Scope to modify or update any programme in case your application requirements change
• Real-time clock incorporated for more effective function monitoring
• Choice of DIN rail or panel mounting

Applications

• Automation of HVAC (heating, ventilation and air conditioning)
• Assembly equipment
• Lighting control

Can PLCs be used to control motors?

PLCs (programmable logic controllers) like this one can be used to control motors. As well as turning the motor on when the start button is pressed, there are three main interlocks that will stop the motor when activated. These are motor vibration high, overload and motor temperature high.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
