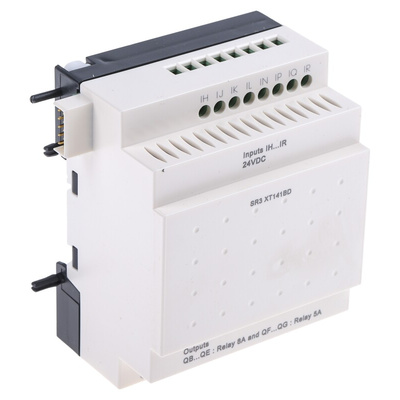

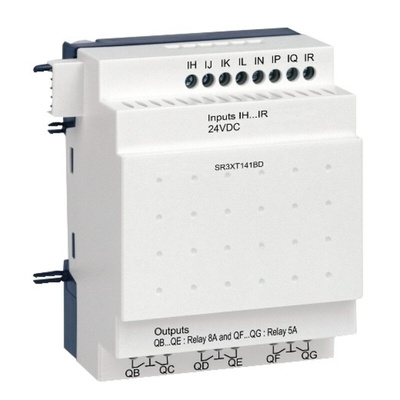

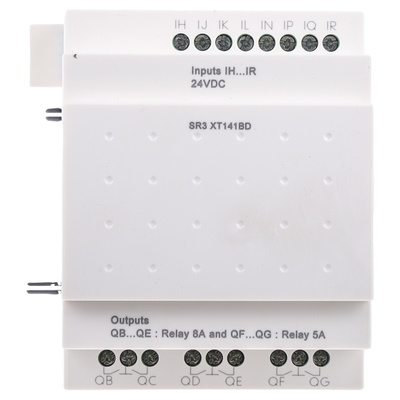

SR3XT141BD, Schneider Electric Zelio Logic Series I/O module for Use with Zelio Logic Modules, 24 V dc Supply, Relay Output,, Логический модуль

Schneider Electric I/O Module, 24 to 250V AC Output Voltage, 24V DC Supply Voltage Rating - Zelio Logic Series - SR3XT141BD

Monitor the operating processes of your industrial machinery using this I/O module from Schneider Electric. It's designed to transmit signals from sensors and actuators in a field device to a PLC for data processing and storage. This unit features eight inputs and six outputs, so you can use it for a wide range of monitoring functions. A mechanical durability rating of 10 million cycles makes it a long-lasting choice. This module is compatible with logic modules from the Zelio Logic series for ease of assembly.

Features & Benefits

• Reverse polarity protection for enhanced electrical safety
• Front panel has an IP40 rating for protection against objects larger than 1mm in size
• Wide operating temperature range of -20°C to +55°C for use in demanding environments

Applications

• Medical technology
• HVAC systems
• Packaging machinery

How do I configure this I/O module?

This module comes with Zelio Soft programming software for ease of setup and configuration.

How do I mount this I/O module?

You can mount this I/O module by snapping it onto a DIN rail, eliminating the need for complex tools.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
