SR3PACK2BD, Schneider Electric Zelio Logic 2 Series PLC CPU for Use with Zelio 2, Relay Output, 16 (Up → 16 Digital, Up, ПЛК

Schneider Electric Starter Packs

Starter packs are a convenient, cost-effective way of evaluating the Zelio Logic programmable relay as they include everything you need to get you started. Contents: Zelio Logic 2 smart relay with relay outputs and real time clock, programming cable and software.

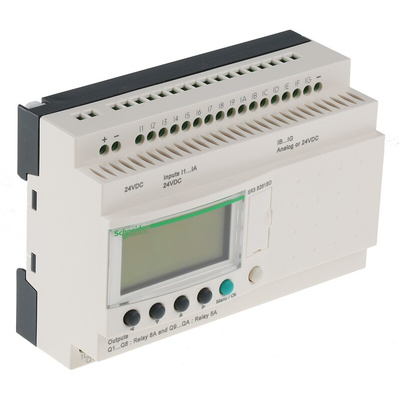

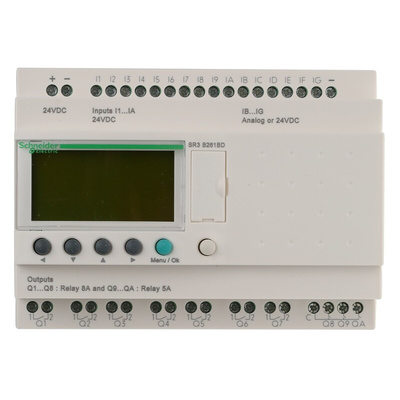

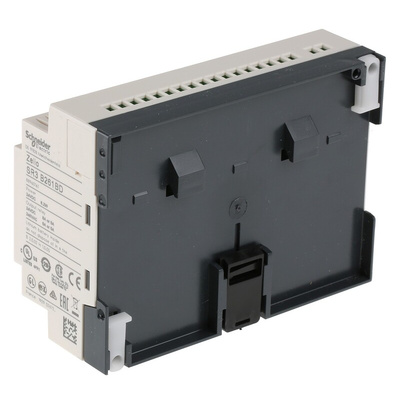

Schneider Electric Zelio Logic Modular Discovery Pack - SR3PACK2BD

• 10 relay outputs
• Brought to you with a local display
• 16 discrete inputs, all conforming to EN/IEC 61131-2 type 1
• Forms part of the Zelio Logic range

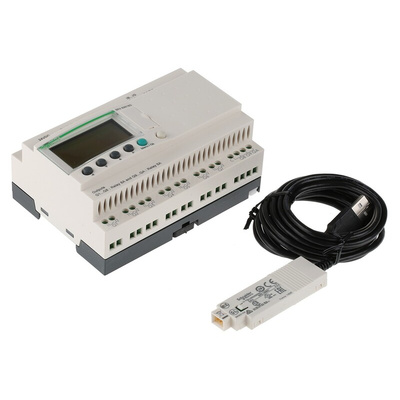

• The kit composition - Cable PC SR2USB01 for connection to PC, Zelio Soft 2 programming software CD-ROM & SR3B261BD
• The discrete input voltage is 24 V DC and the discrete input current is 4mA
• Features polarity protection
• Does have a clock

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
