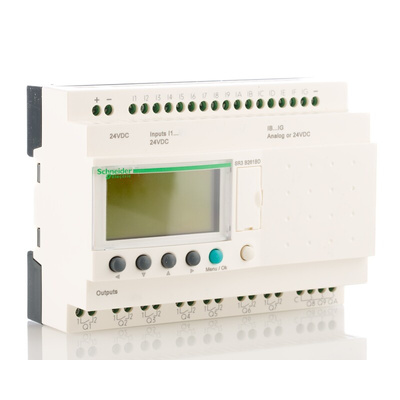

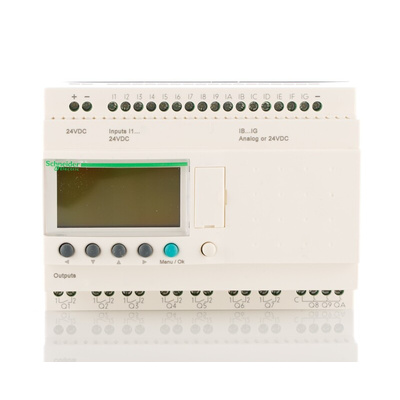

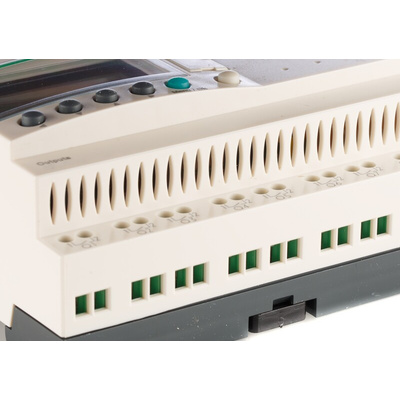

SR2B201BD, Schneider Electric Zelio Logic Series Logic Module, 24 V dc Supply, Relay Output, 12-Input, Analogue, Discrete Input, Логический модуль

Schneider Electric Logic Module, 8 Inputs, 4 Outputs - Zelio Logic Series - SR2B122BDB

Want an efficient way to run your automation systems? Turn to this logic module from Schneider Electric to meet your industrial and commercial needs. The compact computerised unit fits neatly onto your DIN rail via two retractable fixing lugs. For versatility, it can be programmed in three different languages. Ladder logic, FBD (function block diagram) are explained in simple steps through free Zelio Logic programming software. SFC (sequential function chart) language for smaller systems is also available.

Features & Benefits

• Smart relay memory allows a programme to be copied onto another smart relay
• Programmable via operating panel interface or a connected PC
• Backlit LCD (liquid crystal display) for easy programming in dim locations
• Backs up 10 years of data

Applications

• Automation of HVAC (heating, ventilation and air conditioning)
• Management of small production equipment
• Automated lighting management
• Replacement of controls

What are the main advantages of using FBD?

The biggest advantage of using FBD is that you can take many lines of programming and put them into one or several function blocks. It’s generally considered the best for motion controls and easier to follow visually.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
