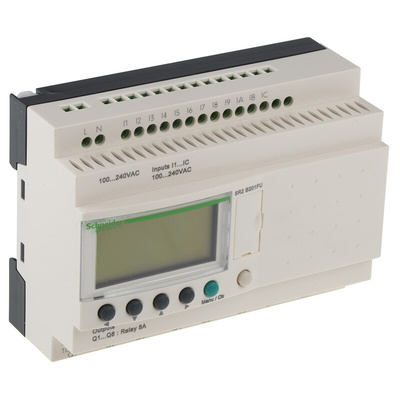

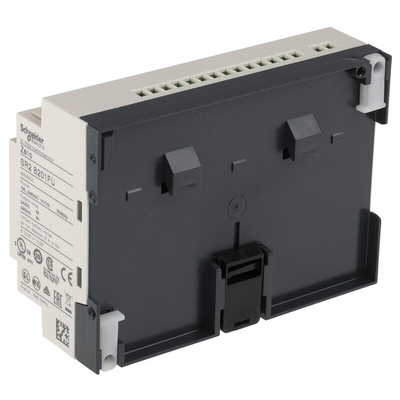

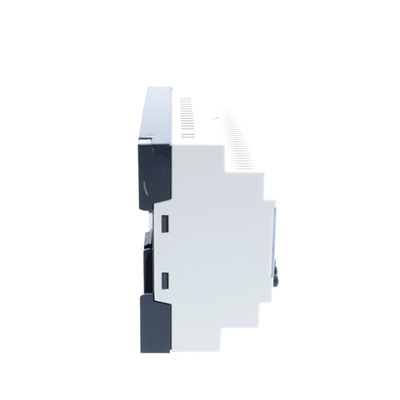

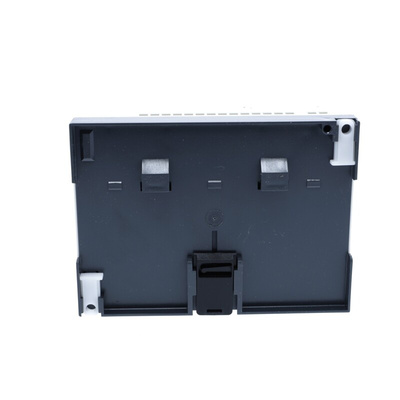

SR2B201FU, Schneider Electric Zelio Logic Smart Series Logic Module, 120 V ac, 240 V ac Supply, Relay Output, 12-Input, Discrete, Логический модуль

Schneider Electric Logic Module, 8 Outputs, Discrete Input Type - Zelio Logic Series - SR2B201FU

Programme and control automated manufacturing processes with this logic module from Schneider Electric. The versatile industrial PLC (programmable logic controller) is able to receive information from up to 12 inputs and control the function of 8 outputs. It's suited to sending commands to equipment like access gates and escalators. The robust unit features high mechanical durability of up to 10 million cycles for extended service life. It's easy to set up, thanks to graphics-based programming languages that simplify the PLCs configuration.

Features & Benefits

• IP40 (ingress protection) rated front cover that's protected against tools and wires larger than 1mm
• Screw terminals for a firm electrical connection that withstands harsh operating conditions
• Suitable for on-site or remote monitoring for versatility and ease of use
• Includes a large, back-lit display that's easy to read

Applications

• Heating control systems
• Production plants
• Medical and pharmaceutical industry

Does this logic module include a clock?

Yes, the module includes a real-time clock so it knows when to take a specific action. The clock's integrated circuit accurately displays the time of day and allows the PLC to keep track of time, even when it's switched off.

Schneider Electric Zelio Logic 2 Smart Relay - Additional Info:

Schneider Electric now offers a new generation of expandable intelligent relays, offering substantial advantages in flexibility and functionality. Zelio Logic 2 Smart Relay is the optimum solution to control tasks such as automating small machines within industry, lighting, HVAC and access control within buildings.

With the small footprint, simple programming, powerful control functions and the possibility of changing or modifying the program in case of changed application requirements, it offers great savings in space and price compared to other options.

Choose between two new series - Compact and Modular. The Compact series is not expandable and is available with the following I/O block sizes: 10 I/O, 12 I/O and 20 I/O.
The Modular series is available with 10 and 26 I/O basic units and is expandable up to 40 I/O with the latter. Apart from this flexibility both new series are programmable using FBD, ladder and Grafcet SFC programming languages.
User friendly design for easy programming and operation, either directly from the module using the navigation buttons or via Windows based software.
