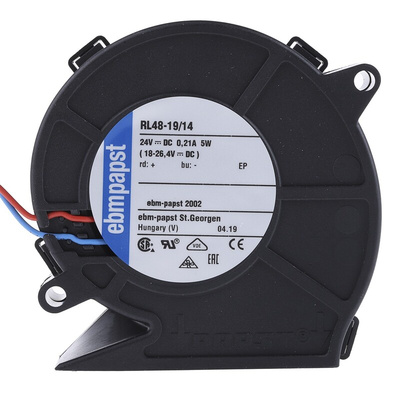

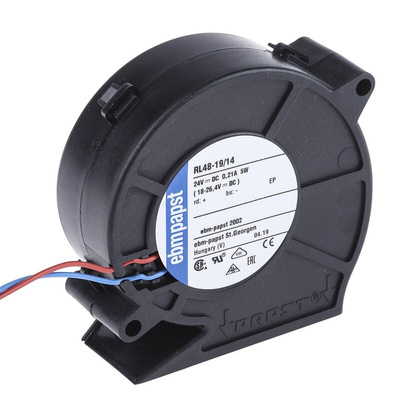

RL48-19/14, ebm-papst RL 48 Series Centrifugal Fan, 24 V dc, 28m³/h, DC Operation, 75.5 x 75.2 x 27mm

ebm-papst Flatpack Radial Blower

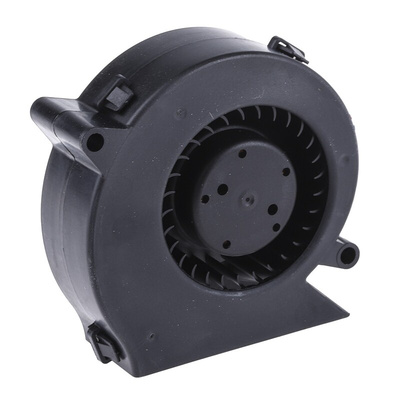

The ebm-papst RL48 series 24VDC flatpack radial blower is a compact fan with speed signal, ball bearing, and wire leaded power connection. It has a scroll housing of fibreglass-reinforced plastic and fibreglass-reinforced plastic impeller. Axial air intake, centrifugal air exhaust out of the outlet direction of airflow with single strands 26AWG, TR 64 leads with a forward-curved impeller. The DC axial compact fan is suitable for high air performance with moderate pressure build-up. The flow of air through the fan blades is parallel to the rotation axis.

Features and Benefits

Compact size
Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High-temperature low power operation
Protection against reverse polarity and blocked rotor
Airflow is 28m³/hour
Fan speed is 4400rpm

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

UL approved
CSA certified
VDE approved
CE certified
