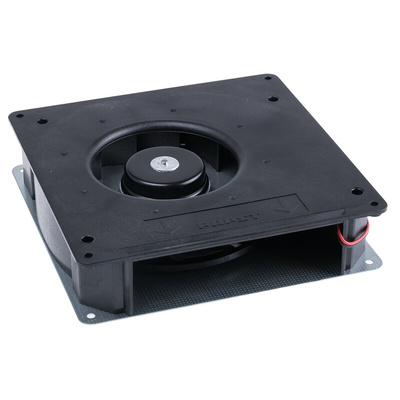

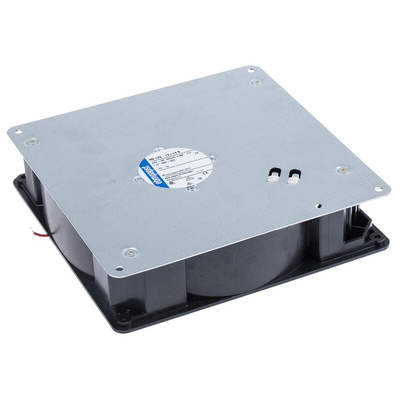

RG125-19/14N, ebm-papst RG 125 N Series Centrifugal Fan, 24 V dc, 87.5m³/h, DC Operation, 180 x 180 x 40mm

ebm-papst Centrifugal Fan

The ebm-papst centrifugal fan has an airflow of 87.5m³/h and a supply voltage rating of 24VDC. It is enabled with a speed signal, a ball bearing and a wire leaded power connection. It has a scroll housing made up of fibreglass-reinforced plastic and a fibreglass-reinforced plastic impeller. It is 180mm long, 180mm wide and 40mm deep. Axial air intake, centrifugal air exhaust out of the outlet direction of airflow with single strands 22AWG, TR 64 leads and the backwards-curved impeller. The AC axial compact fan is suitable for high air performance with moderate pressure build-up.

Features and Benefits

Airflow is at right angles to the intake
High static pressure capabilities
Connections are wire ended
Locked rotor protection
Ball bearing type
High temperature low power operation
Protection against reverse polarity and blocked rotor
Commutation type is electronic

Applications

Central air conditioning units or building ventilation systems
Automobile
Railway
Electronic products
Medical treatment
Household
Ventilation
Air conditioning
Refrigeration system

Certifications

UL approved
CSA certified
VDE approved
CE certified

RG125N Series Data Sheet
