MR210R5LBG, APEM Illuminated DPST, On-Off Rocker Switch Panel Mount, Клавишный переключатель

Double Pole Round Rocker Switches

From APEM, the MR series of double pole round rocker switch designed for panel mounting. With a choice of red or green illumination or plain black non-illuminated, these circular switches are suitable for an array of different applications. Fitting is easy, once a 20 mm diameter cut-out has been made, the round rocker switches simply snap into the panel and are retained securely. The MR series of circular rocker switches are suitable for Class II appliances.

Features and Benefits

• Nylon 66 housing to UL94V- 2
• I/O markings
• Secure snap-in panel mounting
• Industry standard 20 mm panel cut-out

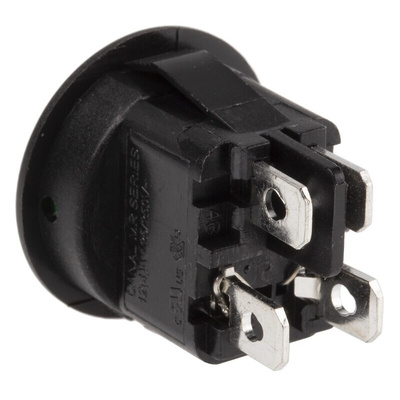

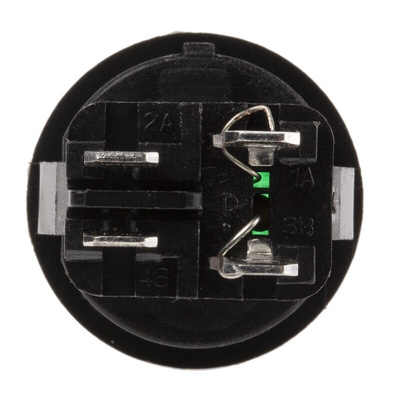

• Connection via 4.8 x 0.8 mm quick connect terminals
• Ergonomically curved actuator
• DPST on-off switching configuration
• Suitable for Class II appliances

Typical applications for rocker switches

Rocker switches are one of the most popular types of electrical switch used in the market today. The simple design and easy operation provide flexibility and reliability. Some of the most common applications are:

• Electrical panels
• Security equipment
• Air conditioning units, fans and heating products
• Domestic appliances, coffee machines, and kettles
• Power supplies

FAQ

• Are the circular rocker switches easy to connect?
Yes, the rocker switches are fitted with 4.8 x 0.8 mm male tab terminals. The connection is easy, simply select the appropriate red, yellow or blue female push on receptacle according to the required wire size.

• Part number 468-5380 is a red illuminated DPST latching switch with I/O rocker marking

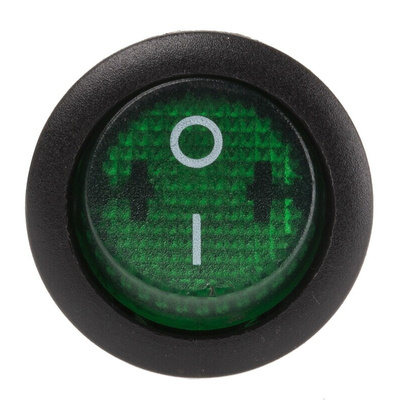

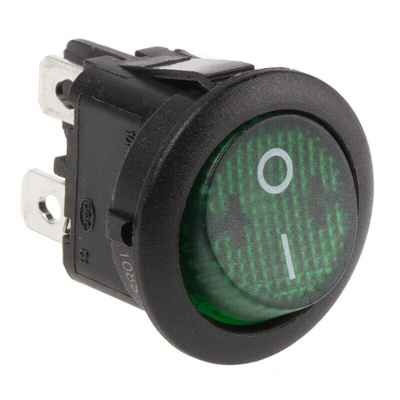

• Part number 468-5374 is a green illuminated DPST latching switch with I/O rocker marking
• Part number 468-5396 is a black non-illuminated DPST latching switch with no rocker marking

Approvals

UL; CSA; VDE; SEMKO; DEMKO; NEMKO; FIMKO

SEV 00-1979

FIMKO FI15638

SEMKO 0037145-01

VDE 40007433

CSA LR55639-45

UL E81103

NEMKO P00101780
