A2108/LSR/232, Compact Tachometer Best Accuracy ±0.1 % - , With RS Cal Laser LED 60000rpm, Тахометр

Advent A2108 for PC Use

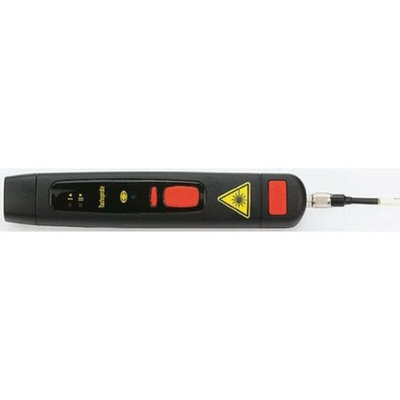

Laser tachometer probe for use with PC.

Non-contact rotational speed measurement or logging via RS-232 link to PC
Long optical range - up to 2m
Speed range up to 60000rpm
CD-ROM with logging software supplied
Green LED 'on target' indicator
Auto power-off to prolong battery life
Calibrated version available

Warning

Read the instruction leaflet carefully prior to use. The safety requirements, for Class II lasers, are detailed in BS EN 60 825:1992 which replaces BS17192:1989.

Supplied with

Batteries, RS-232 serial cable, CD-ROM, carry case.

Compact Tachometer

The Compact optical-contact laser tachometer with RS-232 serial output are data instruments designed to provide short term continuous monitoring of rotational speeds or linear rate with the A2100/01 advent contact adaptor. The voltage output for the A2108/LSR analogue output version provides 1mv/rev = 6vdc @ 6000 rpm. The Tachometer provides direct serial data output to your PC, RS-232 serial adaptor and a CD with logging software is supplied with the A2108/LSR/232 model.

Box Contains:

Instruction manual

A2108/LSR/232 optical-contact laser tachometer with RS-232 serial output

Advent carry case

Pack of 4 AAA batteries

Reflective tape

Certificate of calibration

RS-232 serial adaptor

Software available to download from the PDF downloads & software product tab

Features and Benefits

A Long optical range: up to 2 metres (6ft)
Very wide speed range: up to 60,000 rpm
Remote power On/Off control on RS-232 Serial version
Optical and contact measurement with Adaptor
Handheld, bracket or tripod mounting

A2108-LSR-232 Datasheet
