PX0834/B, Bulgin Buccaneer Series Male RJ45 Connector, Cable Mount, Cat5e, Разъем

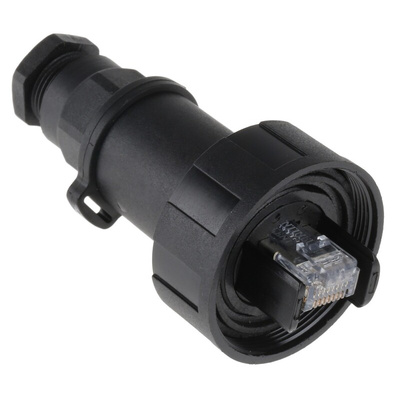

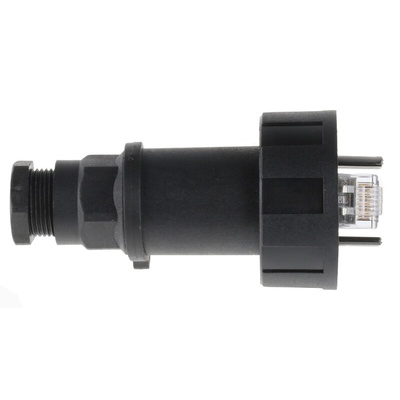

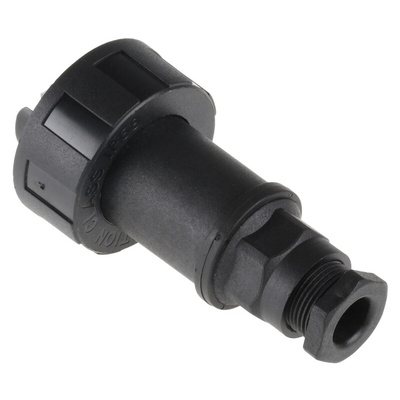

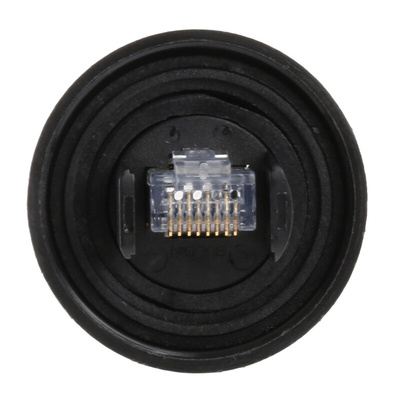

PX0834/B Re-Wireable Cable Connector

The Bulgin PX0834/B re-wireable RJ45 plug connector that provides high performance Cat5e Ethernet connections in harsh environments. This cable mount connector has a voltage rating of 32VAC/42VDC and current rating of up to 1.5A. This connector is made from polyester with a quick-connect mating system that ensures a secure quick connect and disconnect capabilities for use in challenging conditions.

Features and Benefits

• Crimp termination

• Dust and waterproof

• Easy assembly

• Operation temperature ranges between -40°C and 70°C

• Overall diameter is 38.1mm

• Overall length is 77.5mm

• Shielded connectors maintain required screening

• Straight body orientation

• Supplied cable glands

• Accommodates cable diameters 3.5 to 8mm

• Shielded connectors maintain required screening

Note

Patchcords have their own technical specification - see stock no.468-6254 (typical of range). See also Buccaneer USB Connectivity – stock no 468-6327 is typical of range.
For IDC tooling see stock nos 368-9640 and 342-4869

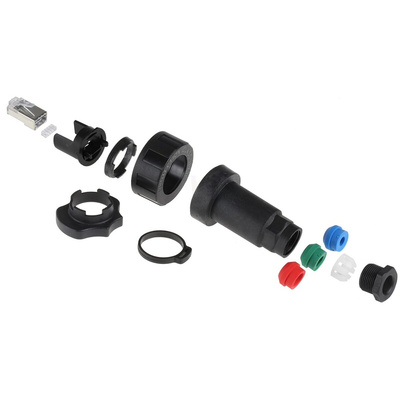

Supplied with

shielded RJ45 plug

Bulgin Buccaneer Range

The Ethernet Buccaneer provides a high degree of environmental sealing for standard Cat5e RJ45 connections. It is an ideal solution to connectivity in harsh and difficult industrial areas.
