1200170003, Brad from Molex 4 Pole M8 Plug to 4 Pole M12 Socket Adapter

Adaptors M12/M8

These Brad® adaptors are available in various combinations of sizes, poles and genders.

Available in:

Nano-Change® M8 to Micro-Change® M12 male to female 3 and 4 pole
Micro-Change® M12 to Nano-Change® M8 female to male 3 and 4 pole
Ultra-Lock® M12 Female to Male 5 pole

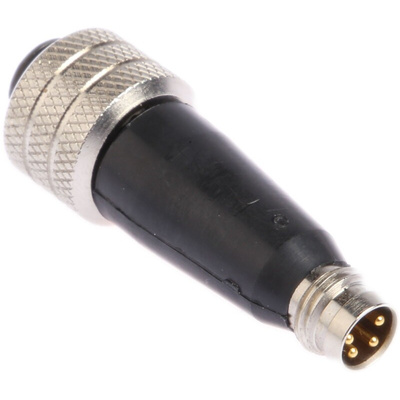

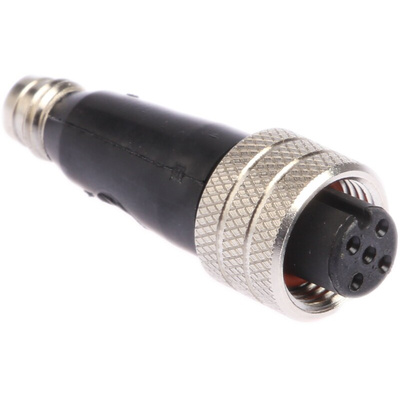

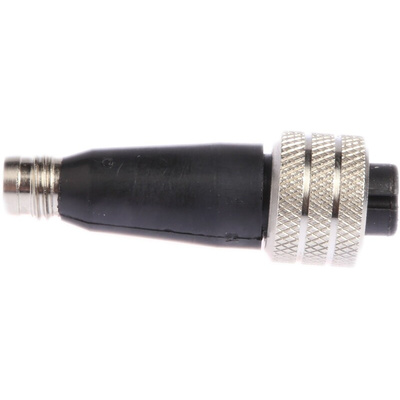

Brad from Molex 4 Pole M8 Plug to 4 Pole M12 Socket Adapter, 60V - 1200170003

Use this Brad from Molex socket adapter to establish secure connections in your industrial control applications. As the unit has a male M8 connector on one side and a female M12 link on the other, you can use it to connect sensor cables to splitter boxes. Its contacts are made of highly conductive brass material to ensure a reliable connection. The connector's housing is made of rugged polyurethane (PUR) which provides impact resistance and protection for users against electric shocks.

• Broad operating temperature range of -25°C to +85°C for use in tough conditions
• Voltage rating of 60V means it's suitable for low-voltage applications
• Straight body orientation for easy access to the connection point
• IP67 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1m of water
• Nickel-plated brass coupling nut with knurled surface makes it easy to tighten with or without gloves

Applications

• Robotics and automation
• Industrial lighting
• Material handling equipment

What's the weight and length of this connector?

This connector has a length of 44.7mm and a weight of 16.83g, so it's easy to handle and won't strain your system.

BRAD - M12

Industrial Automation Connector Systems

Datasheet - 1200170003

Line Drawing - 1200170003
