1200330001, Brad from Molex 4 Pole M8 Socket to 4 Pole M12 Plug Adapter

Adaptors M12/M8

These Brad® adaptors are available in various combinations of sizes, poles and genders.

Available in:

Nano-Change® M8 to Micro-Change® M12 male to female 3 and 4 pole
Micro-Change® M12 to Nano-Change® M8 female to male 3 and 4 pole
Ultra-Lock® M12 Female to Male 5 pole

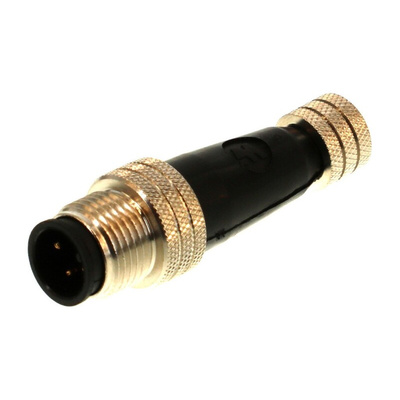

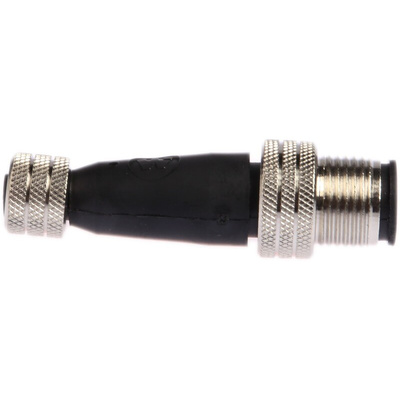

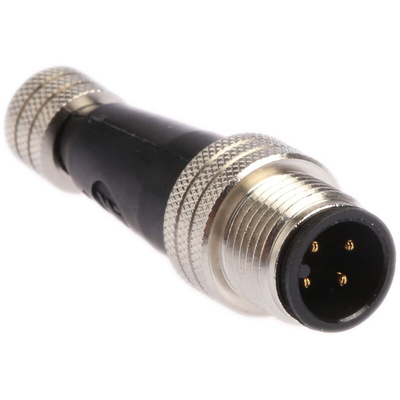

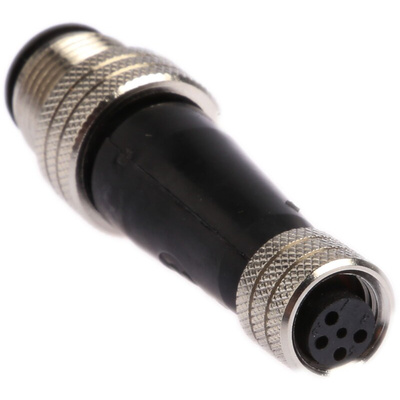

Brad from Molex 4 Pole M8 Socket to 4 Pole M12 Plug Adapter, IP67 - 1200330001

Use Brad from Molex's weatherproof adapter to establish secure connections in your industrial control applications. The connector's housing is made of durable polyurethane (PUR) which provides resistance to impact and protects you from electric shocks. With a compact overall length of 50mm, this connector is suitable for installation in busy enclosures. Its copper-alloy contacts are highly conductive, so deliver a reliable connection. These contacts are also gold plated, so they withstand oxidation and rust to ensure long-term performance. Adapters like this are frequently used in the manufacturing and automotive industries.

• Nickel-plated brass coupling nut with knurled surface for easy ightening with or without gloves
• IP67 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1m of water
• Straight body orientation makes it easy to plug in and remove

Applications

• Pick-and-place robots
• Ground vehicle networks
• Conveyor systems

What's the operating temperature range of this adapter?

This component has an operating temperature range of 0°C to +50°C, so it's suitable for use in demanding industrial environments.

BRAD - M12

Technical Drawing

Industrial Automation Connector Systems
