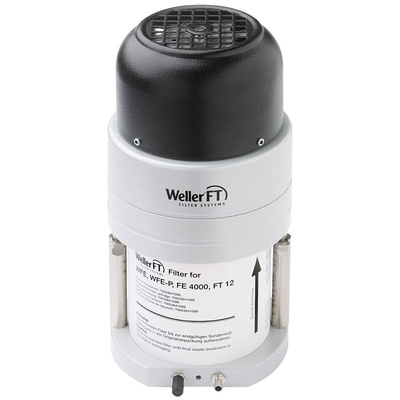

T0053638699, Weller WFE P, 230V ac Solder Fume Extractor, Fine Dust Filter F7; HEPA Filter H13 & Wide Band Gas Filter for cleanroom,

Weller WFE, WFE-P Zero Smog Fume Extraction Units

Weller Zero Smog WFE series are low noise fume extractor units that ensure breathable air at your workbench. Two types are available, the standard WFE model portable filter that’s compressed air-driven and the WFE P that’s electrically driven with a built-in pump with two suction stages. The extraction units are designed to be used with Weller FE soldering irons which offer a smoke tube in the handle.

Why would you buy these extractor units?

Fume extraction is a vital component during soldering. Solder fumes can be extremely harmful to individuals and the environment. Weller solder fumes extractors are the ideal solution for ensuring breathable quality air during soldering. The units are completely portable, so they can be positioned where you need it. The Zero Smog units can be used for up to two workplaces and the filters can be changed quickly with ease.

Features and Benefits

• Two models available – WFE and WFE P


• For use with FE soldering irons


• Unit for up to 2 solder work stations


• Quick and easy installation


• Low noise levels


• Quick and easy filter replacement


• Maintenance-free

WFE

• Operating on 3.5 to 6 bar clean & oil-free compressed air


• Prefilter is a fine particulate gas filter (EU7)


• Extracts fumes from up to 2 fume extraction soldering pencils


• The compact size makes it convenient to use anywhere


• Weller T005 36 402 99N = RS stock no: 611-9784

WFE P

• Electrically driven solder fume extraction unit


• Extracts fumes from up to 2 fume extraction soldering pencils


• Compact & convenient to use anywhere


• 230 V/50 Hz two speed maintenance-free pump makes independent from external air sources


• Thermally-fused capacity motor protects the unit from overheating


• Weller T005 36 383 99N (UK plug) = RS stock no: 405-3430


• Weller T005 36 386 99N (Euro plug) = RS stock no: 468-7033

Spare Parts

• Compressed air filter T0058735757: = RS stock no: 515-1282 (WFE only)


• Main filter cartridge T0053641099 = RS stock no: 405-3452


• Submicron particulate air filter T0053642199 = RS stock no: 162-2572

FAQ’s

Are they easy to set-up?

Yes, the Zero Smog series extraction units can be installed in under 5 minutes and are completely portable.

Note

The main filter cartridge and sub-micron particulate air filter are available as replacement parts.
