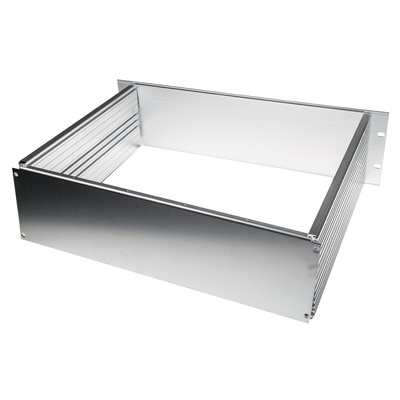

20860220, nVent-SCHROFF MultipacPRO Rack Mount Chassis, 3U, 84HP

Basic Assembly

Accommodates PCBs (horizontally) or non-standard components on a chassis
Extruded aluminium construction
Slotted side panels to fix chassis plates at variable heights and depths
HF-shielding can be fitted
Protection IP20 to IEC/EN 60529 (with closed covers)
Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish
Comprises one front and one rear panel, two side panels, one assembly kit

Note

Handles, Cover plates, EMC gasket kit and Chassis plates need to be ordered separately

Standards

IEC 60297-3/DIN 41 494-5

Mounting Instructions Multipac Enclosure

nVent brochure
