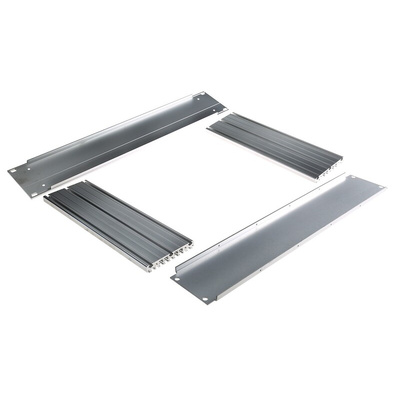

20860-211, nVent SCHROFF Multipac Series 2U Subrack

Basic Assembly

Accommodates PCBs (horizontally) or non-standard components on a chassis
Extruded aluminium construction
Slotted side panels to fix chassis plates at variable heights and depths
HF-shielding can be fitted
Protection IP20 to IEC/EN 60529 (with closed covers)
Side panels: extruded aluminium natural finish, Front panel: extruded aluminium clear chromate finish, Rear panel: sheet aluminium clear chromate finish
Comprises one front and one rear panel, two side panels, one assembly kit

Note

Handles, Cover plates, EMC gasket kit and Chassis plates need to be ordered separately

Standards

IEC 60297-3/DIN 41 494-5

For the accessories, the handles 469-1206, cover plate non perforated 469-1234, cover plated perforated 469-1262, EMC gasket kit 631-9366 and chassis plate 259-9120 need to be ordered seperately.
