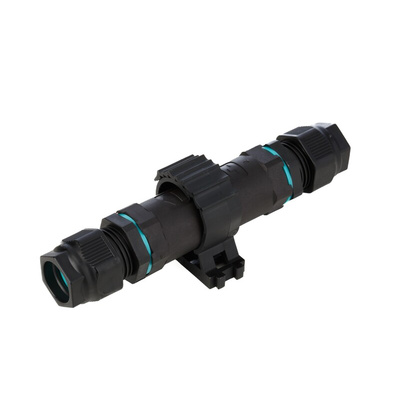

RS PRO Black Nylon Junction Box, IP68, 3 Terminals

RS PRO Inline Junction Box

Extremely durable and sturdy, this cable connector allows you to establish reliable electrical connections in the most demanding environments. This RS PRO connector is available in 3-pole or 5-pole versions and works well with any circular profile cable.

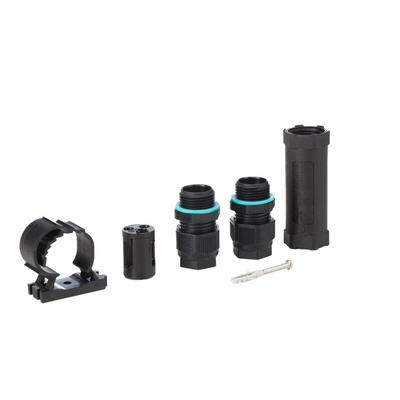

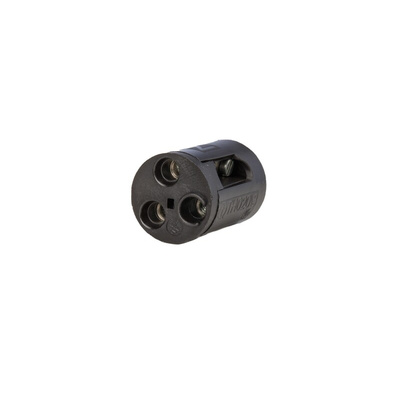

Along with its 5-bar pressure capacity, its IP68 certification means it's highly waterproof and dust-proof, making it suitable for marine and rugged applications. Use this circular connector in temperatures ranging from -20°C to +125°C. Its 2-part gland body sealing ring allows for the use of a wide range of different diameters, contributing further to its versatility. The internal terminal block can be easily accessed if you need to wire it in and a metal mounting clip makes cable affixing it easier.

Cable mount connectors are used in the power systems of electrical devices and in data transfer and electrical signal transmission.

Features and Benefits

• Current rating of 32 A
• Voltage rating of 450 V
• Brass contacts, nickel-plated
• Operating temperature range of -20°C to +125°C
• Lengths of 115 mm (3-pole), 130 mm (5-pole)
• Diameters of 26.5 mm (3-pole), 32.0 mm (5-pole)
• 3-pole connectors accept diameters of 5 to 8 mm (inner and outer seal), 8 to 13 mm (outer seal only)
• 5-pole connectors accept diameters of 8 to 12 mm (inner and outer seal), 12 to 17 mm (outer seal only)
• Cable gland size of M20 (3-pole) and M25 (5-pole)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
