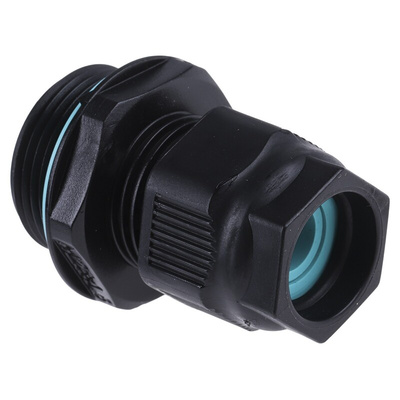

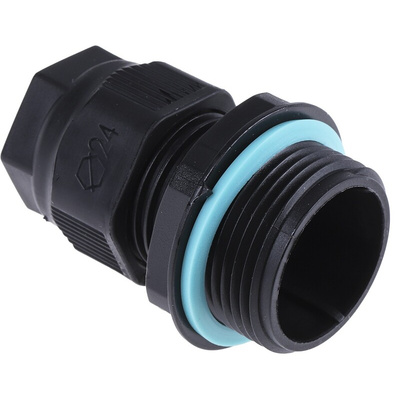

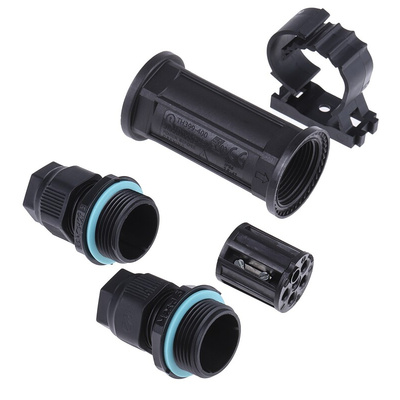

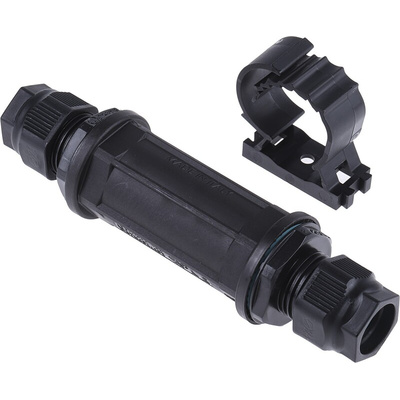

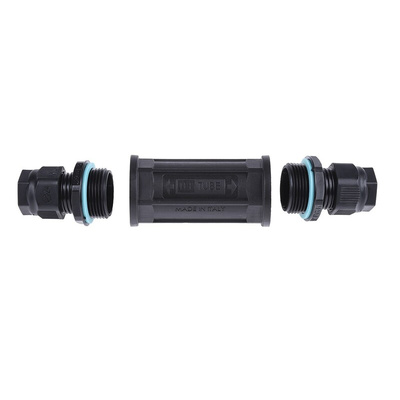

RS PRO Black Nylon Junction Box, IP68, 5 Terminals

RS PRO Inline Junction Box

Use this cable connector to make reliable electrical connections in the most extreme environments. This 5-pole RS PRO connector is tough and extremely durable and works well with any circular profile cable.

With an IP68 certification, it is highly waterproof and can be immersed in depths of more than 1 m. It's also dust-proof and can operate at 5-bar pressure, allowing this circular connector to be used in marine and rugged applications. Accepting wires of 4 mm², this non-fused terminal block operates at temperatures between -20°C and +125°C. Its brass contacts are nickel-plated, making them resistant to rust.

Non-fused terminal blocks are used in the power systems of electrical devices and in data transfer and electrical signal transmission. As part of the RS PRO range, this item has been stringently tested for safety, durability and quality.

Features and Benefits

• 5-pole non-fused terminal block
• Current rating of 32 A
• Voltage rating of 450 V
• Brass contacts, nickel-plated
• Operating temperature range of -20°C to +125°C
• Length of 130 mm
• Diameter of 32.0 mm
• Wire size of 4 mm²

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
