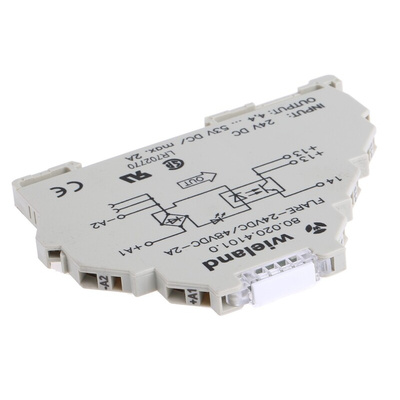

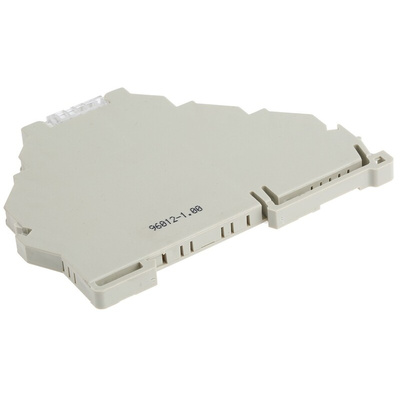

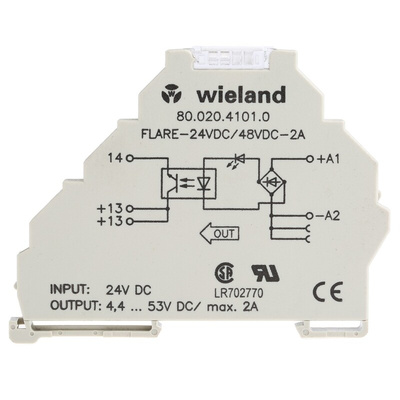

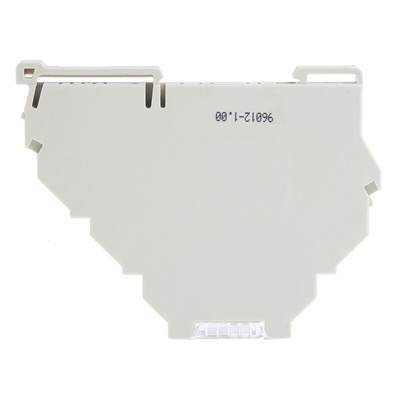

80.020.4101.0, Wieland flare Series Solid State Relay, 2 A Load, DIN Rail Mount, 53 V Load, 53 V Control, Реле

4694328
Номер производителя: 80.020.4101.0Производитель: Wieland
Цена за шт.
17696.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Terminal Block Relay Solid State

DIN rail mounting and only 6.2mm wide
Input voltages of 24Vdc up to 230V ac
Plug-in jumpers to link common potentials
Status LED
Marking facility

Approvals

UL and CSA

Solid State Relay Flare -24VDC/48VDC-2A

From the Flare Series this solid state relay features a number of functions and can be mounted to any DIN rail for use in a number of industrial applications.

Features and Benefits

• Spring clamp connection
• Operating Voltage 24 V DC
• DIN rail mounting
• Voltage range of 4.4 to 53 V DC
• Maximum load current 2 A
• Solid state relay has a mounting width of 6.2 mm
• Wide operating temperature of between 0 to +50 °C

Техническая спецификация
pdfDatasheet
