2864464, Phoenix Contact MCR-VAC Series Current Measuring Transducer, Current Input, Relay Output, 20 → 30V dc Supply

4705850
Номер производителя: 2864464Производитель: Phoenix Contact
Цена за шт.
47307.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

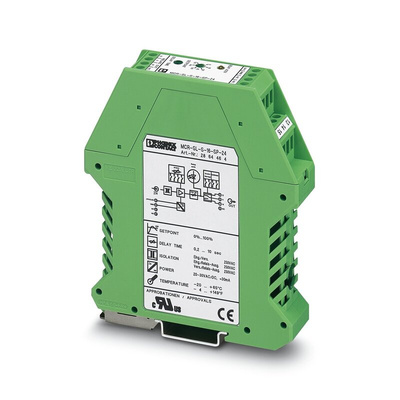

Phoenix Contact Current Measuring Transducer, 0 to 16A Input Range, DIN Rail Mounting - MCR-SL-S-16-SP-24 - 2864464

When your electrical circuit is speaking a different language to your industrial equipment, use this current measuring transducer from Phoenix Contact to help them communicate. The handy block turns AC sine waves from your power supply and turns them into machine-readable binary signals. The output is a relay changeover contact with a quick 40ms response time, so you can use it to change between normal operations and safety systems, such as switching from general to emergency lighting.
As the unit has an adjustable switching hysteresis, you can select a switching point between 0 and 16A, so it'll work with your specific application. It's tested to meet industrial equipment safety standards for EMC and emission, so you can be sure that electrical noise won't interfere with the transducer's reliability. For easy integration into your existing setup, it clips simply onto your DIN rail and is mountable in any position.

Features & Benefits

• Wide operating temperature range between -20°C and +65°C, to handle harsh conditions
• Tough polyamide housing and conductive gold-plated contacts provide durability
• Screw connection keeps your wires securely in place

Техническая спецификация
pdfMCR-SL-S-16-SP-24 Current protector for sinusoidal alternating currents 0…16 A ac Data Sheet
pdfMCR-SL current limit switch Data Sheet
pdfInstruction Sheet - 2864464
pdfLine Drawing - 2864464
Входной диапазон:
0 → 16A
Диапазон рабочих температур:
-20 → +65°C
Напряжение питания:
20 → 30В пост. тока
Рабочая температура - максимальная:
+65°C
Рабочая температура - минимальная:
-20°C
Серия:
MCR-VAC
Тип входного сигнала:
Ток
Тип выходного сигнала:
Реле
Тип модуля:
Current Transducer
Тип монтажа:
Крепление на DIN рейку
