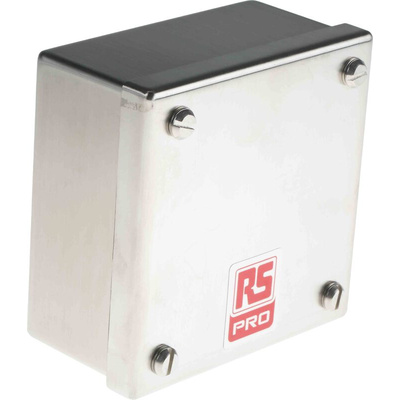

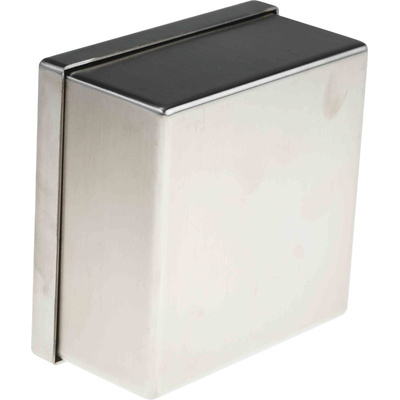

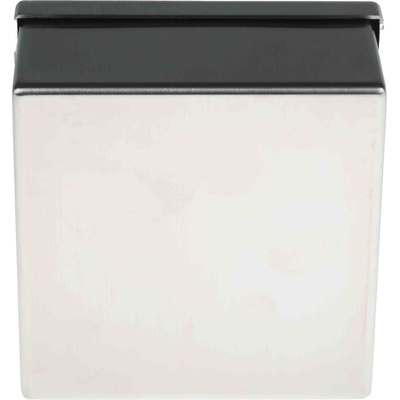

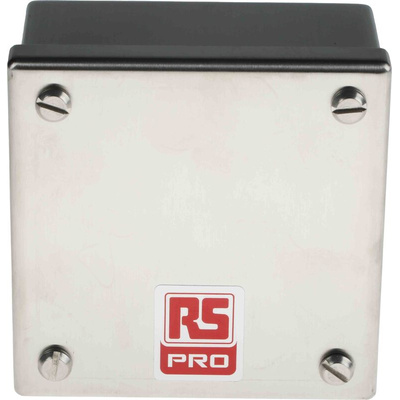

RS PRO 316 Stainless Steel Satin Adaptable Enclosure Box, 104mm x 104mm x 50mm

RS PRO 316 Stainless Steel Satin Adaptable Enclosure Box, 0 Knockouts 104 mm x 104 mm x 50 mm

The RS PRO 316 stainless steel adaptable enclosure box is ideal for storing and protecting components which might otherwise be damaged by dirt, dust and moisture.

Manufactured from high-grade stainless steel, this general purpose enclosure is well-suited for applications where components are frequently washed down with high-pressure liquids. The brushed satin finish also looks good, so lends itself to applications in architecture. The lid screws on securely with four M5 bolts and is fitted with a gasket to provide a weatherproof seal for damp conditions. It's IP66 & IP69K rated, meaning it can be used where it will be exposed to sprayed water of temperatures up to +80°C.

The adaptable enclosure box measures 104 mm x 104 mm x 50 mm and is fitted with an integral earthing terminal and an earth link. You'll find it used in the brewing, dairy and pharmaceutical industries.

Features and Benefits

• 316 stainless steel material
• Brushed satin finish
• Length of 104 mm
• Width of 104 mm
• Depth of 50 mm
• M5 earth terminal
• M5 earth link
• Maximum operating temperature of +80°C
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic control
• IP66 & IP69K Rated
• Dimensions 104mm x 104mm x 50mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Approvals

UL

RS PRO Dimensional Drawing

RS PRO Datasheet
