Catu DT-500 Insulation Tester, 500V dc Max, 1MΩ Max, Измеритель сопротивления изоляции

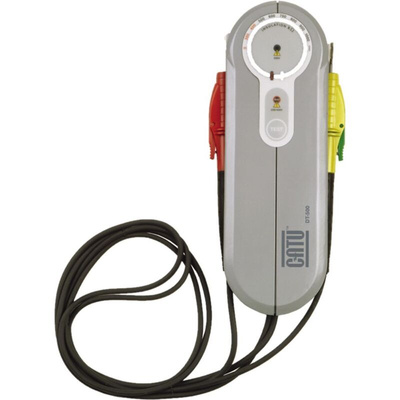

DT-500 406 insulation tester

Application

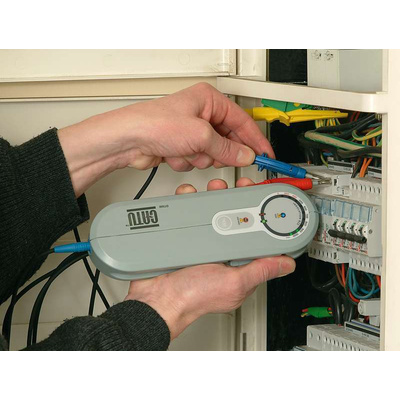

• Controls the insulation resistance of installations or devices.
• The control is carried out in power-off mode.
• The measurement voltage delivered by the device is 500 V DC.

Features

• Low battery indicator LED.
• Shunt between phase and neutral in order to protect fragile equipment (electronics, computers,...).
• Equipped with a safety system that prevents any measurement if the device is connected to an under voltage installation.
• IP2X Blue (Neutral) independent and connectable by a safety terminal.

Composition

• 1 device equipped with 2 button tips (red and green/yellow).

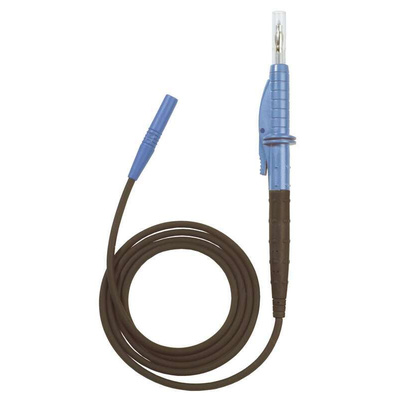

• 1 cord with blue key tip.
• 3 IP2X alligator clips (red, blue, green/yellow).
• 1 plastic case

Optional Accessories

• M-951981: Replacement blue touch tip
• M-87292: storage case
• M-881602: Blue replacement pliers

Datasheet - Catu DT-500

Instruction Sheet - Catu DT-500
