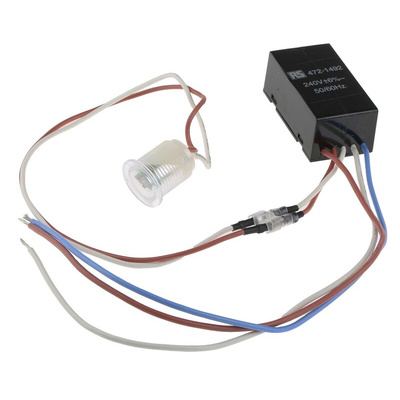

P12RE drg 113, Royce Thompson Electric Lighting Controller Detector, Cadmium Sulfide, Remote Mount, 220 to 270 V

2-Part Luminaire Controller

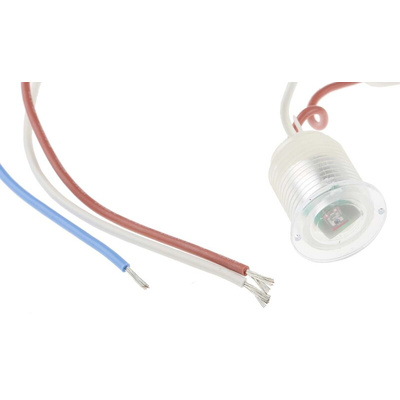

Remote IP65 detector

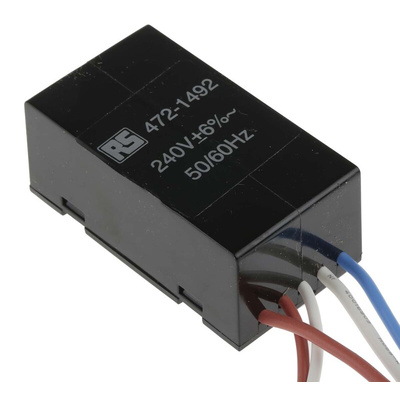

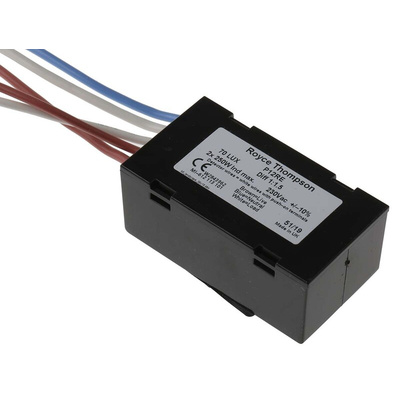

Internal mount controller
Detector has a 27mm dia. flange, a depth of 25mm and a 20mm thread

Supplied with

2 nitrile gaskets

Royce Thompson Electric Lighting Controller Detector, 220 to 270V AC Voltage Rating, 0.6W Power Rating - P12RE drg 113

Automatically manage your industrial light systems with this lighting controller from Royce Thompson Electric. It's a two-part component with a photocell detector and controller that turn the lights on and off depending on the time of day. The detector is housed in a robust polycarbonate casing that's resistant to impact, so you can use it in harsh conditions. As it consumes just 0.6W of power, this is an energy-efficient solution. You can set the switching requirements of this device to suit your design specifications.

Features & Benefits

• Compact controller dimensions of 57 (length) x 31 (width) x 25mm (height) for installation in setups with limited space
• Broad operating temperature range of -20°C to +60°C for use in demanding conditions
• IP65 (ingress protection) rating to withstand dust and low-pressure water jets

Applications

• Car park lighting systems
• Underground tunnels

Is this lighting controller fireproof?

This lighting controller is self-extinguishing, so it will stop burning within a short time when a fire occurs. It's also flame-resistant and can help reduce the spread of fire.

Daylight Lighting Controllers

These controllers automatically turn lights 'ON' and 'OFF' in response to changes in ambient light levels, primarily the transition from day to night and vice-versa. The more advanced types (see note below) have inbuilt logic to minimise false triggering, whereas the remainder have inbuilt time delays or higher 'OFF' thresholds, to prevent on/off cycling. As a general rule, these controllers should be sited such that they are not illuminated, by the light they are controlling. Nominal supply voltage is 230Vac.,Note regarding energy-saving negative-hysteresis controllers,Where figures for the 'OFF' threshold are lower than for the 'ON' threshold, the sensor is designed such that four thresholds are actually monitored. These are: dusk, the middle of the night, dawn and the middle of the day. Monitoring at times other than dusk and dawn enables the sensor to determine what it should be looking for next, minimising false triggering and improving overall controller operation.

V9032 Remote Mounting Photo Cell and Controller

P12HE-P12RE One Part and Two Part Miniature Photocells Data Sheet
