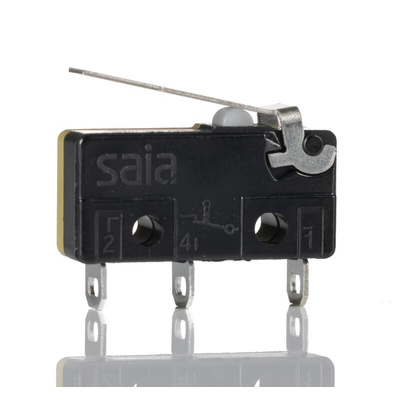

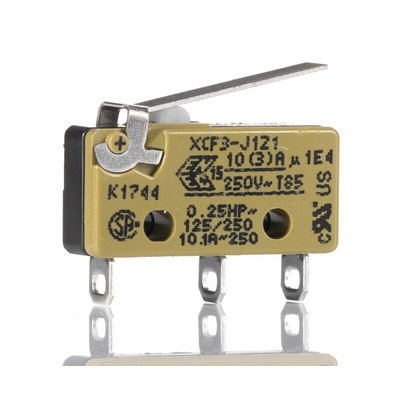

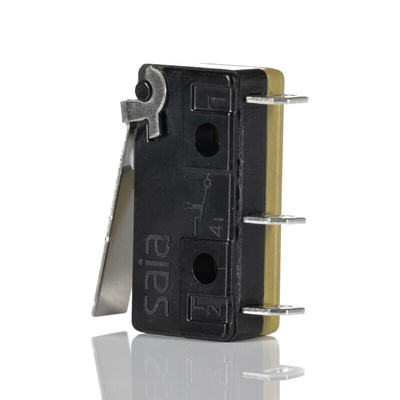

XCF3-J1-Z1, Saia-Burgess Hinge Lever Micro Switch, Solder Terminal, 10.1 A @ 250 V ac, CO, IP40, Микропереключатель

XC Sub-miniature Micro-switches

Single pole changeover mechanism
High current versions
Solder, quick connect (2.8mm) and PCB mounting versions
UL94V-0 flame retardant housing
Contact Rating; XCG:6A / XCF:10A @ 250Vac
Operating temperature range: -40 to +85°C

Approvals

UL, CSA, ENEC

Saia-Burgess Micro Switch

The Saia-Burgess is a single pole double throw (SPDT) XC subminiature microswitch. It is also known as a snap action switch. It operates by using a spring-loaded lever to open and close a set of internal contacts inside the unit. It has a simulated hinge actuator. It requires a 1.04N operating force to energize the spring. The operating current rating is 10.1A.

Features and Benefits

• Body is made from gold and silver material
• Compact design and solder terminal
• High mechanical and electrical lifecycle
• High-performance
• Low cost
• Operating temperature ranges between -40°C and 85°C
• PCB mounting type
• Single-pole changeover mechanism
• Voltage rating is 250VAC

Applications

• ATMs
• Circuit breakers
• Doors
• Gaming machines
• Vending machines

Certifications

• CSA• CUL certified• ENEC• UL approved
