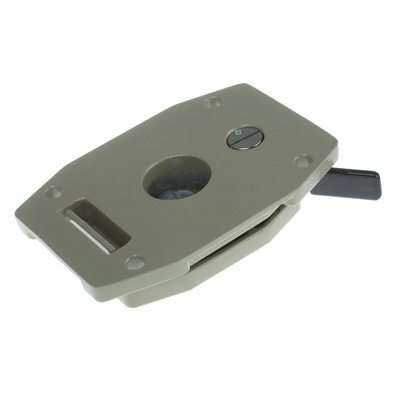

9-261, Bernstein Universal screw-on plate

Bench vice, Spannfix-Vario

Combinable clamping tool
Suitable as bench vice but also for constructing prototypes, monitoring cameras, loudspeakers, tuners or transformers

9-261, order no. 473-0783 - SPANNFIX foot

For firm screwing, 150 x 105 mm
With ball joint and und threaded spigot, M12
Weight: 800 g

9-251 - SPANNFIX foot

For screwing to workbenches, top thickness up to 80 mm
With ball joint and threaded spigot, M12
Weight 950 g

9-253 - PCB holder -

With shock-resistant support and sprung clamp
Clamping width adjustable between 25 mm and 270 mm
Support strip length 70 mm
Weight 280 g

9-254 - Universal clamping plate -

With three slots, for variable mounting of standard screws
Weight 120 g

9-252 - Screw head -

Jaw width 50 mm, clamping pressure 1.5 kN
Clamping width 70 mm, clamping depth 38 mm
Weight 560 g

9-255 - Angle adapter -

As an additional device, enables a larger turning circle on each individual part while working
Weight 95 g

Various parts can be supplied individually, see price list
