BEXBG05DPAC230AB1A1R/A, e2s BExBG05 Series Amber Strobe Beacon, 230 V ac, Surface Mount, Xenon Bulb, IP67, Маячок

e2s Beacon

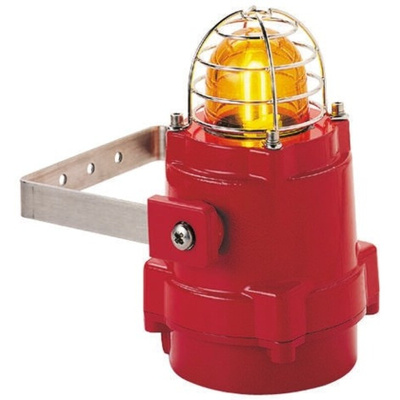

The e2s amber lens xenon beacon is a flame-proof alarm, ideal for general signalling duties whilst their robust construction makes installation in the harshest of environments possible. Its additional features include automatic synchronisation on multi-beacon systems and stainless steel guard and mounting bracket as a standard. It has enclosures manufactured from corrosion-proof, marine-grade, copper-free LM6 aluminium that is phosphate and powder coated.

Features and Benefits

The supply voltage is 230VAC
5J energy
Gas-proof and dust ignition-proof beacons
Light effect is flashing
Automatic synchronisation on multi-beacon systems
Can be set to 'flip-flop' alternating mode with other units on multi-beacon systems
Xenon tubes mechanically secured against shock/vibration
Good resistance to humidity and salt spray environments
Very large termination area
Ratchet adjustable stainless steel ’U’ bracket
IN & OUT terminals
Base width is 153.6mm and height is 246mm
Cable entire is 2 x M20
Operating voltage ranges between -50°C and 70°C

Applications

Traffic control signalling
Hazard awareness
Vehicle safety
Police, Fire and highways lights

Certifications

ATEX approved
IECEx approved
INMETRO approved
GOST-R approved
IP66 rated
IP67 rated
CE certified
EN 60079-0 : 2006
EN 60079-1 : 2007
EN 60079-7 : 2003
EN 61241-0 : 2006
EN 61241-1 : 2004
