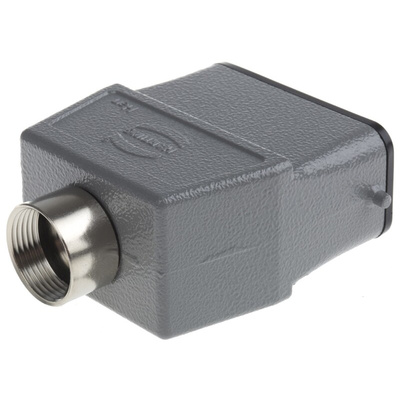

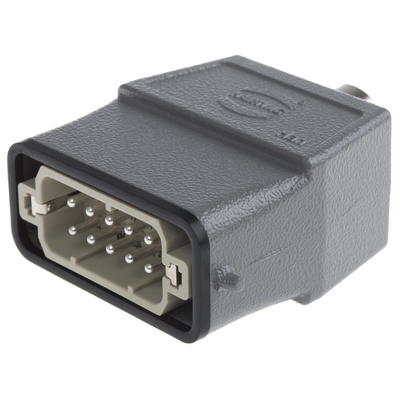

09200100440+09200102612, HARTING Panel Kit, 10 + PE Way, 16A, Male, Han A, 250 V

Hood Cable Plugs

• Side or top entry types
• Single lever locking
• With male insert

Note

Male and female inserts may be fitted to a hood or housing if the installation requires a reverse configuration.

Approvals

UL, CSA, SEV

Han A® Connector Assembly Packs

Two-part packs that provide towards the assembly of Harting Han A® cable plugs, cable coupling hoods, and bulkhead/panel mounting housings. Screw terminal connection. Each pack contains a hood or housing, and a male or female insert. All the individual components are available separately from within the relevant Ranges of inserts, hoods and housings. Suitable cable glands are available separately – see stock nos. 390-088, 444-2600 and range. Available in plastic and metal bodied types.

Datasheet

Dimensional Drawing 09 20 010 2612 Male insert, Han 10 A

Harting Kits Part Numbers
