19200031440, HARTING Han A Heavy Duty Power Connector Hood, M20 Thread

Harting Han A Size 3 A Standard Metal Hoods and Housings

Han A size 3 A standard metal hoods and housings with a slim, space saving design. These Han 3 A hoods and housings are made from robust diecast zinc with an RAL 7037 powder coated surface. The Han 3A housings have lever locking systems which provide a secure connection. IP67 protection to IEC 50529 is possible when used with a seal screw (stock number 313-6540). Both the hoods and housings are available with a range of mounting options and cable entry angles. All models are highly reliable and excellent quality.

Features and Benefits

• Slim, space saving design
• Robust diecast zinc construction
• Locking levers for a secure connection
• Range of mounting options and cable entry angles
• IP67 protection using seal screw

Product Application Information

These Han A Size 3 A Hoods are suitable for use in industrial applications

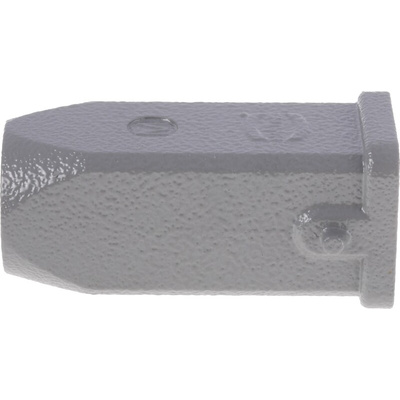

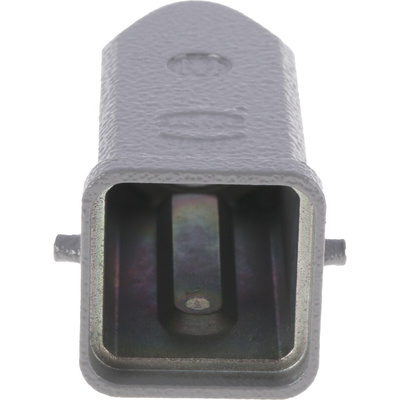

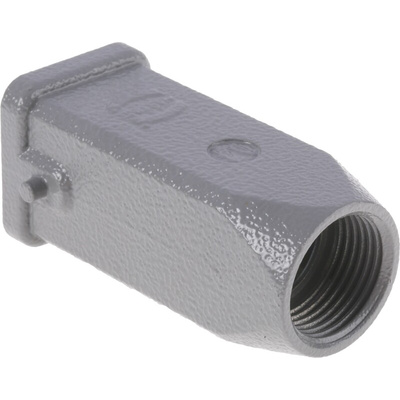

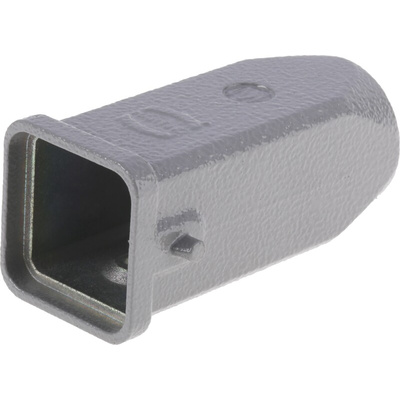

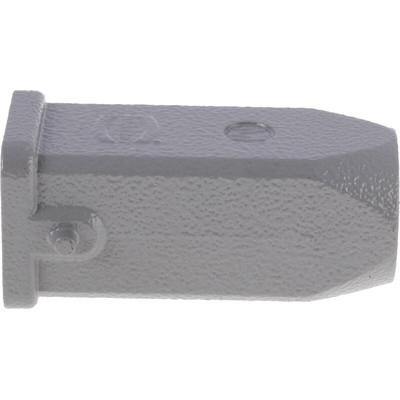

19200031440 Han A Top Entry Hood

The 19200031440 is a top entry connector hood for industrial connectors with a single locking lever. The hood is made from zinc die cast to provide great reliability and durability. They are ideal for creating a reliable connection between the connector and the cable, making them suitable for challenging industrial applications that may be exposed to moisture, dirt and dust.

19200031440 Features:

Size 3 A
Top entry version
Cable entry: 1xM20
IP44 rating,( IP65/IP67 with seal screw RS 313-6450)

Approvals

DNV GL

Harting Han A Series Size 3 A Hoods and Housings

These hoods and housings are compatible with appropriate inserts from the Han A®, D® including Han®8D(U), and Q series. The 'compatibility' table details that relationship by indicating the specific Harting insert series, together with a stock number typical of each insert range.

CSA LR18753

UL E235076

Datasheet - 19 20 003 1440

Drawing - 19 20 003 1440

Guide to Han sizes
