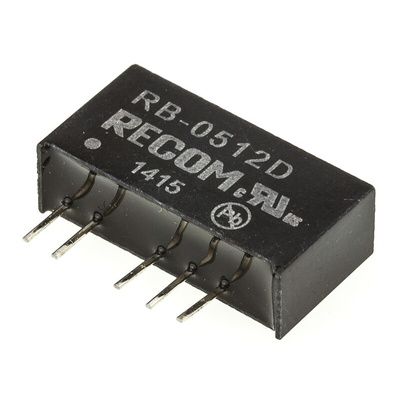

RB-0512D, Recom RB DC-DC Converter, ±12V dc/ ±42mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series

Single & dual output options\t
1kVdc isolation\t
UL94V-0 package material\t
SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.

RECOM DC-DC Converter, Dual Output, ±5% Output Voltage Accuracy - RB Series - RB-0512D

To keep a steady hand on the power supply to your equipment, choose this DC-DC converter from RECOM. It takes an input voltage range from 4.5V to 5.5V DC and boosts it up to an output level of ±12V DC. The unit's 500V AC isolation voltage serves as a protective barrier between the input and output source to stop sparks from flying. An efficiency rating of up to 82% means it releases minimal heat waste so runs cool, even without a heat sink. Thanks to its industry-standard pinout, you can easily mount this converter onto your existing circuit board.

• Dual output design for versatility
• Low output ripple and noise of ±75mVp-p for clear signal transmissions
• Integrated continuous short-circuit protection to prevent electric hazards
• Output voltage accuracy of ±5% for reliable performance
• Wide operating temperature range between -40°C and +85°C, making it suitable for use in demanding settings

Applications

• Computer peripherals
• Game consoles
• Lighting fixtures
• Electric motors
• Aviation engineering

How durable is this DC-DC converter?

With a mean time between failures of 1,012,000 hours when working at +25°C and 151,000 hours at +85°C, this is a long-lasting power option.

Datasheet
