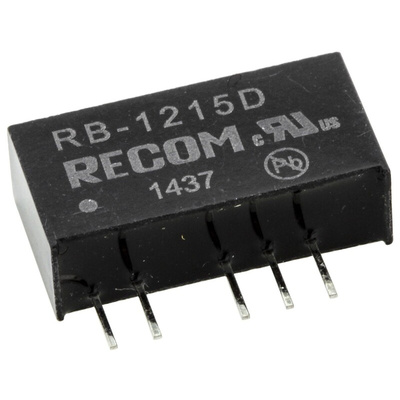

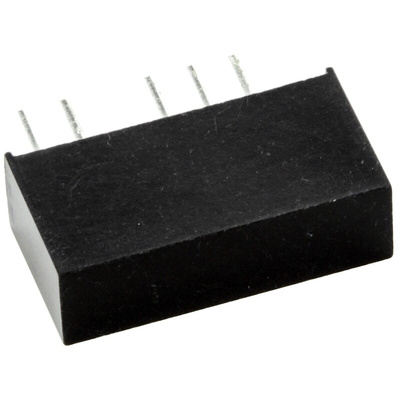

RB-1215D, Recom RB DC-DC Converter, ±15V dc/ ±33mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

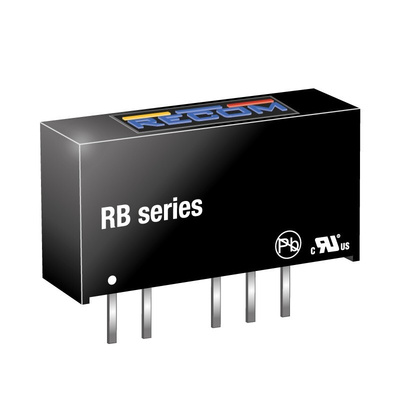

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series

Single & dual output options\t
1kVdc isolation\t
UL94V-0 package material\t
SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.

RECOM DC-DC Converter, 1kV DC Isolation Voltage, 80 to 84% Efficiency - RB Series - RB-1215D

When you need a securely isolated supply of power for sensitive battery-powered components, this DC-DC converter from RECOM gets the job done. It takes inputs between 10.8 and 13.2V DC and converts them to a reliable output of +15V DC to keep a steady hand on your power supply. The unit's isolation voltage of 1kV DC protects against significant electrical surges to keep you and your equipment safe and sound. A wide operating temperature range of -40°C to +85°C means you can count on it in demanding settings. As this versatile device has dual outputs, you can use it with two circuits at a time.

• Efficiency of 80 to 84% minimises waste heat, so there's no need for a heatsink
• Maximum load regulation of 10% for closely controlled output voltage values
• MTBF of 10,200,000 hours at +85°C for long-lasting performance

Applications

• Smart lighting
• Telecommunications
• Small-scale electronics

What does this converter's ripple and noise rating mean?

This converter has a low maximum ripple and noise of ±75mVp-p. This means you can trust your output voltages are stable and there's minimal risk of a spike making connected equipment wobble.
