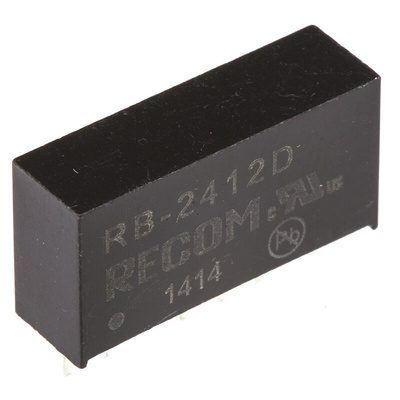

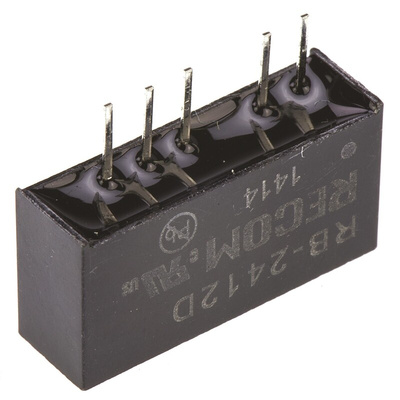

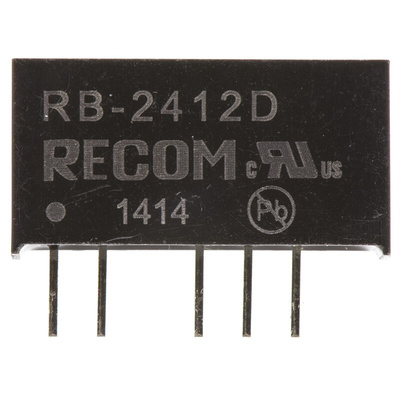

RB-2412D, Recom RB DC-DC Converter, ±12V dc/ ±42mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

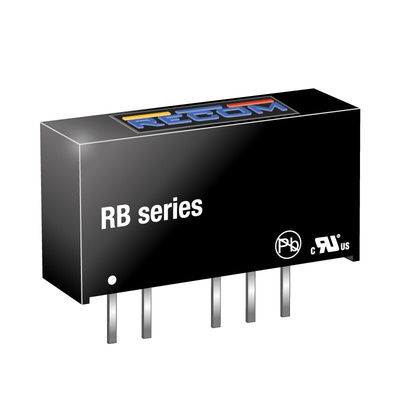

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series

Single & dual output options\t
1kVdc isolation\t
UL94V-0 package material\t
SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.

RECOM DC-DC Converter, 82% Efficiency Rating, 500V AC Isolation Voltage - RB Series - RB-2412D

Keep your low-voltage circuit humming happily with this DC-DC converter from RECOM. It steps down a 24V DC input to a dual 12V DC output. Thanks to the standardised SIP7 package, installation is a breeze, and there's less chance of wiring mismatches. The straightforward through-hole mounting method is quick and simple, providing sturdy electrical connections you can rely on. For added safety, this robust piece of kit features flame-retardant housing that self-extinguishes in under 10 seconds to help prevent fire hazards.

Features & Benefits

• Compact dimensions of just 9.6 (L) x 6.0 (W) x 10.2mm (D) mean it'll fit neatly onto a crowded power rail
• Wide operating temperature range of -40°C to +85°C for compatibility with extreme conditions
• 1kV DC isolation offers protection against electrical surges in the event of a fault

Applications

• Renewable energy installations
• Radar equipment
• Medical devices

What's the difference between regulated and unregulated DC-DC converters?

Unregulated converters like this one feature a smaller overall footprint, so they're a compact choice where space is limited. Because the output voltage in an unregulated converter can vary slightly depending on operating conditions, they are best suited to applications that can cope with a bit of supply fluctuation.
