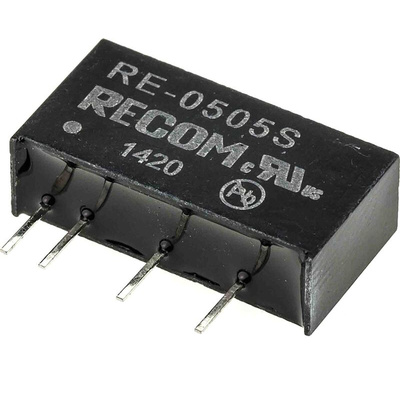

RE-0505S, Recom RE DC-DC Converter, 5V dc/ 200mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, 1s Short Circuit Protection, 1000μF Maximum Capacitive Load - RE Series - RE-0505S

Use this DC-DC converter from RECOM to ensure a stable voltage supply to the connected devices on your PCB. It can step input voltages from 3.3 to 24V DC up or down to give a steady, ripple-free 5V DC output for your voltage-sensitive components. Through-hole mounting achieves a permanent connection to your circuit board, which means the unit can handle the mechanical stresses that comes with industrial settings.

Features & Benefits

• Power rating of 1W for energy efficiency and low heat dissipation
• Isolation voltage rating of 1kV DC handles surges to keep you safe
• Wide operating temperature range of -40°C to +85°C for use in challenging conditions
• SIP7 package has industry-standard pin-outs to suit most circuit designs

Applications

• Photovoltaic cells
• Alarm systems

Is this DC-DC converter fire-safe?

Yes, this DC-DC converter stops burning in 10 seconds or less, so it can help to stop the spread of flames in the event of a fire.

Is this DC-DC converter waterproof?

This converter isn't protected from water, so you should use and store it in dry conditions to prevent damage.
