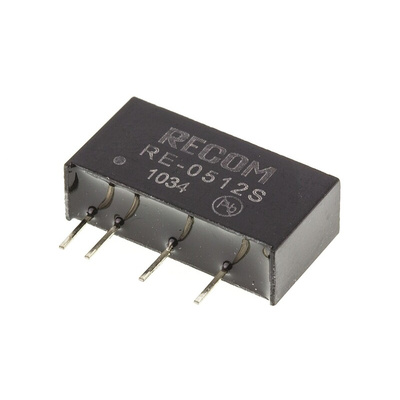

RE-0512S, Recom RE DC-DC Converter, 12V dc/ 84mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

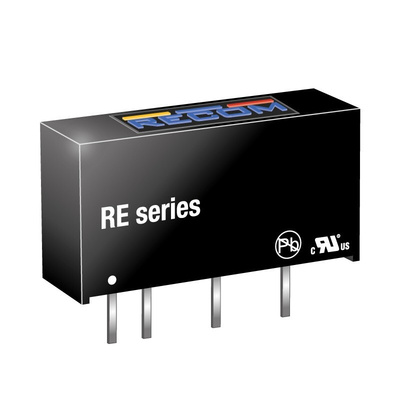

RECOM DC-DC Converter, 1kV DC Isolation, SIP-7 Pinout - RE Series - RE-0512S

When the job calls for a stable power and conversion solution, put your trust in this DC-DC converter from RECOM. It takes inputs anywhere between 4.5 and 5.5V DC and outputs a steady 12V DC that's handy for charging up your battery-run devices. This model's isolated to 1kV DC, so it's a safe bet for shielding you and your equipment against voltage surges. Low ripple and noise values of 100mVp-p maximum let you know there's minimal risk of electrical disturbance caused by EMI. The component's industry-standard SIP-7 pinout makes it a breeze to mount securely on your PCB using the robust through-hole termination method.

Features & Benefits

• Compact dimensions of 19.6 (L) x 6 (W) x 10.2mm (D) make it a piece of cake to fit onto your PCB
• Non-flammable package material won't contribute to the spread of flames in case of fire
• Mean time between failures of 992,000hrs, so it's a long-lasting option

Applications

• Industrial automation
• Renewable energy
• Fluorescent lighting rigs

How efficient is this converter?

This DC-DC converter has an efficiency rating between 80 and 84%, so it wastes little energy as heat. This means you won't need extras like a fan or heatsink to keep it cool.
