RE-1205S, Recom RE DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

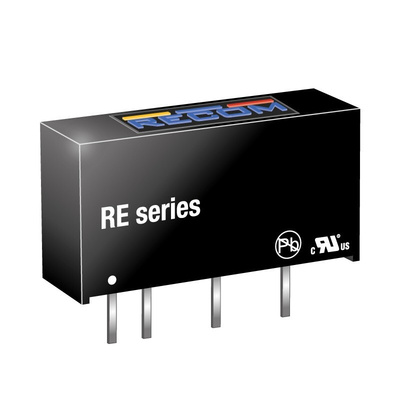

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series

Single & dual output options\t
1kVdc isolation\t
UL94V-0 package material\t
SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.

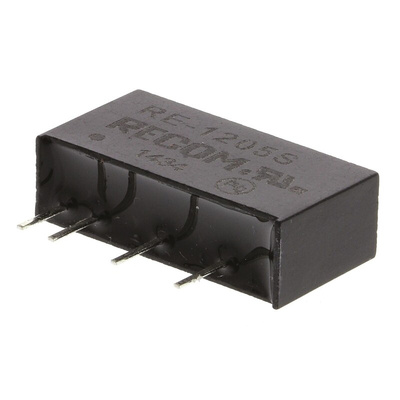

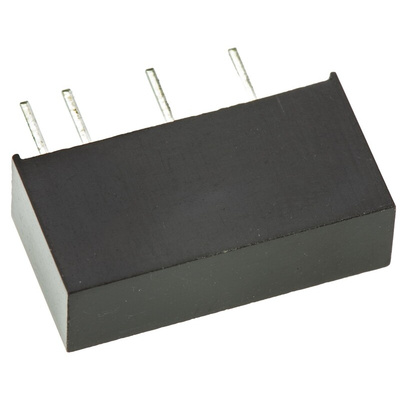

RECOM DC-DC Converter, 1kV DC Isolation Voltage, 1 Output - RE Series - RE-1205S

Use this DC-DC converter from RECOM as a reliable stepping stone between your circuits. It steps an input voltage of 10.8 to 13.2V DC down to an output voltage of 5V DC, giving you a steady power supply for low-voltage devices. An isolation voltage of 1kV DC takes the shock out of electrical surges, helping to prevent damage to your connected equipment. You can rest assured this unit will stick with you for the long haul thanks to its mean time between failures of over nine million hours at +25°C.

• Broad operating temperature range between -40°C and +85°C for use in demanding settings
• Typical efficiency of 78 to 80% at full load for minimal power waste
• Flame-retardant housing for safety in the event of a fire
• Industry-standard pin-outs for hassle-free assembly
• Light weight of 2.2g to put minimal strain on your equipment

Applications

• Data and telecommunication centres
• Automated manufacturing
• Lighting systems
• Factories and workshops

Is this converter protected against short circuits?

Yes, this converter comes with continuous short-circuit protection to prevent damage to downstream equipment and cut out downtime.
