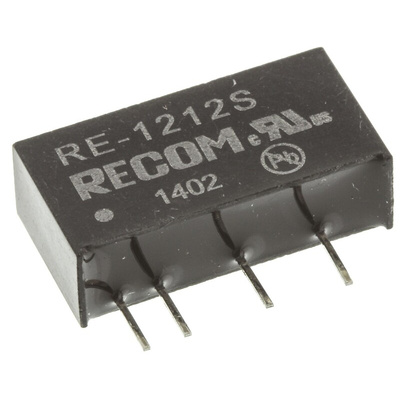

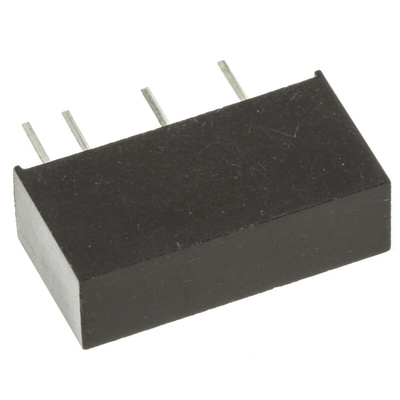

RE-1212S, Recom RE DC-DC Converter, 12V dc/ 84mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

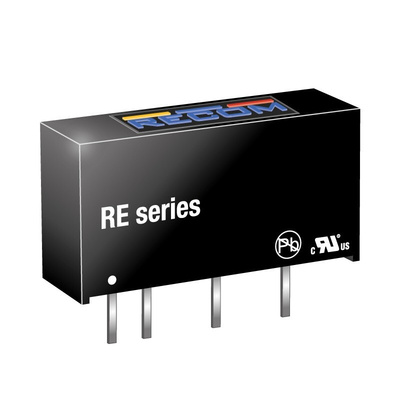

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series

Single & dual output options\t
1kVdc isolation\t
UL94V-0 package material\t
SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.

RECOM DC-DC Converter, 80 to 84% Efficiency, 1kV Isolation - RE Series - RE-1212S

Choose this 1W DC-DC converter from RECOM to adjust the voltage level from your DC energy source. By converting signals between 10.8 and 13.2V DC to a stable 12V DC output with 83mA, it lets you power an electrical component with these input ratings. Providing the correct inputs keeps your parts working smoothly by preventing costly equipment damage and breakdowns. The device's slim size of 19.6 (L) x 6.0 (W) x 10.2mm (H) makes it a breeze to squeeze into tight work areas.

Features & Benefits

• Broad operating temperature range of -40°C to +85°C for use in harsh environments
• Through-hole mounting type ensures a strong, stable connection to your PCB
• Light weight of 2.2g doesn't put a strain on your system
• Maximum operating humidity of 95% RH, so it holds up in damp conditions

Applications

• Smart lighting networks
• Telecommunications equipment
• Hybrid electric vehicles
• Consumer electronics

How reliable is this unit?

This product has a mean time between failures of just under a million hours, ensuring it will work for years to come.

Datasheet

Selection Guide - Power Supplies For Distributed Power Architecture
