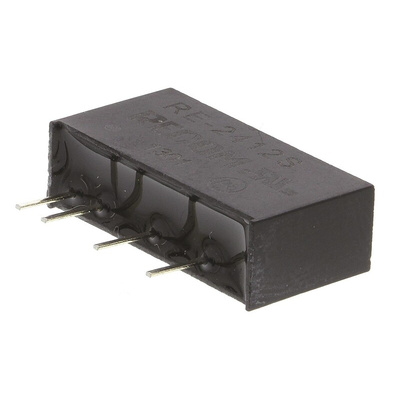

RE-2412S, Recom RE DC-DC Converter, 12V dc/ 84mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

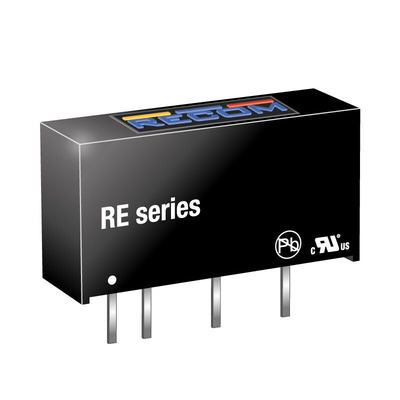

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RE/RB Series

Single & dual output options\t
1kVdc isolation\t
UL94V-0 package material\t
SIP7 package with industry standard pin-outs

Note

Operating temperature is without derating.

RECOM DC-DC Converter, 21.6 to 26.4V DC Input Voltage, 1kV Isolation - RE Series - RE-2412S

Need to change the voltage from your DC power source? Go with this 1W RECOM DC-DC converter. Supplying it with 24V gets you a 12V output with a current of 83mA, so you can easily energise a compatible device. This also prevents breakdowns and equipment damage, ensuring your circuit keeps ticking over. Thanks to the unit's small size of 19.6 (L) x 6.0 (W) x 10.2mm (H), it can happily squeeze into tight work areas.

Features & Benefits

• Maximum operating humidity of 95% RH assures you it can function in steamy environments
• High efficiency rating of 80 to 84% shows it's an energy-saving component
• Through-hole mounting type provides a secure connection when installed on your PCB

Applications

• Renewable energy sector
• Electric vehicles
• Medical technology

Can I use this converter in harsh environments?

Yes, you can. Its broad operating temperature range of -40°C to +85°C makes it ideal for use in harsh work areas.

How much does this product weigh?

It weighs just 2.2g, so it doesn't put pressure on your PCB.

Datasheet

Selection Guide - Power Supplies For Distributed Power Architecture
