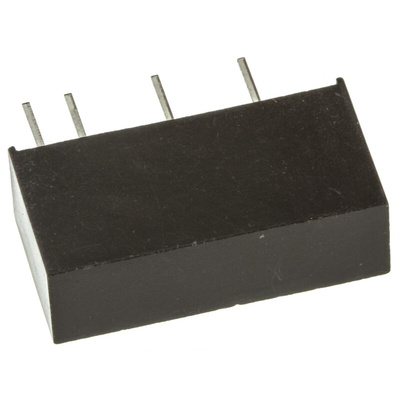

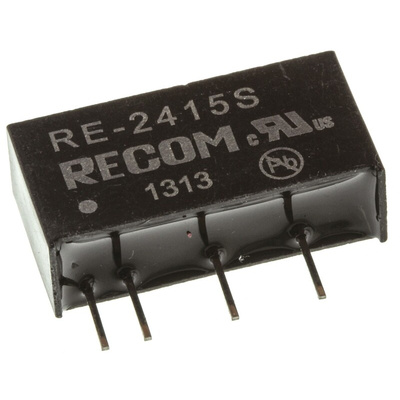

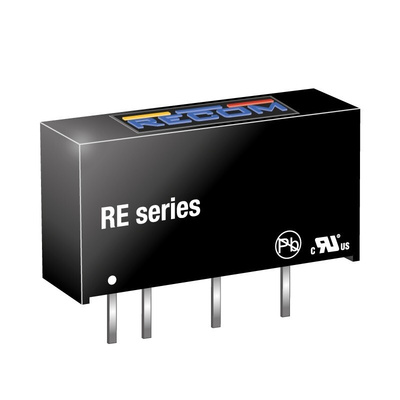

RE-2415S, Recom RE DC-DC Converter, 15V dc/ 66mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 95% Maximum Relative Humidity, 2.2g Weight - RE Series - RE-2415S

For safe and steady power delivery to your PCB-linked appliances, switch to this DC-DC converter from RECOM. It takes an input voltage between 21.6 and 26.4V DC and delivers a balanced 15V DC output to keep components like LED lights running without a flicker. As output ripple and noise are kept down to a maximum of 100mVp-p, the signal stays clean. For ease of installation, this SIP unit comes with standard pins for secure through-hole mounting on your circuit board. It performs reliably in an operating temperature range between -40°C and +85°C, it's safe to use in challenging conditions.

Features & Benefits

• Power rating of 1W makes it suitable for low-power systems
• Isolation voltage of 1kV reduces the risk of damage from sudden power spikes
• Plastic housing provides reliable protection against wear and impact
• Mean time between failures of 16 million hours assures you of dependable performance

Applications

• Automotive industry
• Oil and gas plants
• PCs and laptops

Is this converter flame-resistant?

Yes, it stops burning in 10 seconds or less, so you can rest assured that it won't spread flames in the event of a fire.
