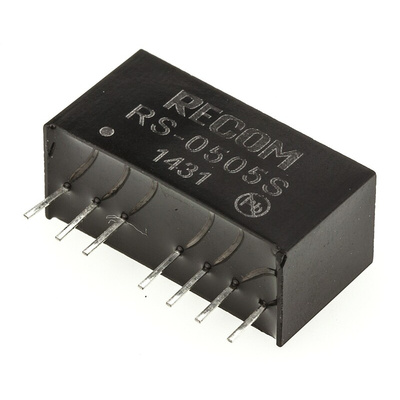

RS-0505S, Recom RS DC-DC Converter, 5V dc/ 400mA Output, 4.5 → 9 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

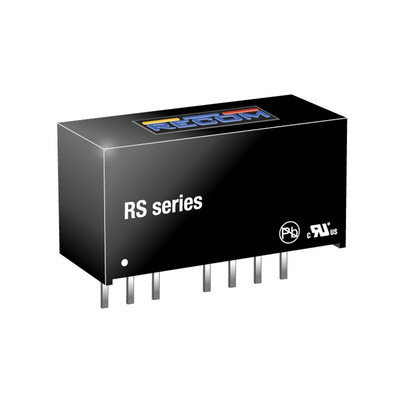

Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS Series

High power-density, an industrial temperature range of -40° to +85°C.
Additional features such as Remote-On-Off control make these converters ideal for highly sophisticated industrial designs.

2:1 wide input range
Regulated outputs
1kVdc isolation
Continuous short circuit protection
Low noise
UL94V-0 package material
83% efficiency
SIP 8 package

Note

Operating temperature is without derating.

Standards

EN60950-1

RECOM DC-DC Converter, 1kV DC Isolation, 73 to 75% Efficiency - RS Series - RS-0505S

Need regulated voltage to suit sensitive battery-powered devices? Trust this DC-DC converter from RECOM to deliver the goods. It accepts inputs across a broad 2:1 range (4.5 to 9V DC) and outputs a stable 5V DC to power connected components safely. Tight line and load regulation of ±0.5% means you can count on close control of these values, so making adjustments for specific applications is a breeze. By delivering 2W from a SIP8 module, this small package provides high energy density and packs a powerful punch.

Features & Benefits

• Mean time between failures of 1,398,000 hours, so it's with you for the long haul
• Flame-retardant epoxy potting combines insulation with fire safety
• 73 to 75% efficiency means it produces little waste energy as heat, so there's no need for a heatsink
• 1kV DC isolation for effective protection against electrical surges

Applications

• Telecommunications networks
• Manufacturing equipment
• Consumer electronics

What's the benefit of this unit's low ripple and noise?

This converter has a low noise rating of 50mVp-p, so you can count on stable output voltages and less risk of damage caused by voltage spikes.

RS-S_D(Z) Series Datasheet
