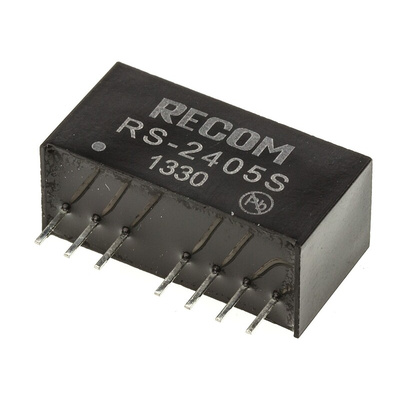

RS-2405S, Recom RS DC-DC Converter, 5V dc/ 400mA Output, 18 → 36 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, Continuous Short-Circuit Protection, 4.7g Weight - RS Series - RS-2405S

Hand over control to this DC-DC converter from RECOM to change up the current in your industrial system. It takes an input between 18 and 36V DC and converts it to a reliable 5V DC output. The unit's 500V AC isolation voltage stops damaging surges flowing through your circuitry to keep your infrastructure in good health. You're assured of consistent performance thanks to a ±0.5% maximum line and load regulation. As the converter reaches 78% efficiency, excess waste is kept to a minimum.

Features & Benefits

• Through-hole mounting creates a secure and stable connection that's ideal for high-vibration environments
• MTBF of just under 1.4 million hours provides long-term performance
• Housing self-extinguishes within 10 seconds in the event of a fire

Applications

• Industrial automation
• Processing and assembly lines
• Medical and pharmaceutical industries

What are this unit's dimensions?

It has compact dimensions of 21.8 (L) x 11.1 (W) x 9.2mm (D) to fit neatly on your PCB.

Can I use this device in harsh industrial conditions?

Yes. The converter has a broad operating temperature range of -40°C to +85°C, so it's ideal for use in harsh industrial conditions.

Datasheet
