RS-2405D, Recom RS DC-DC Converter, ±5V dc/ ±200mA Output, 18 → 36 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min, Преобразователь

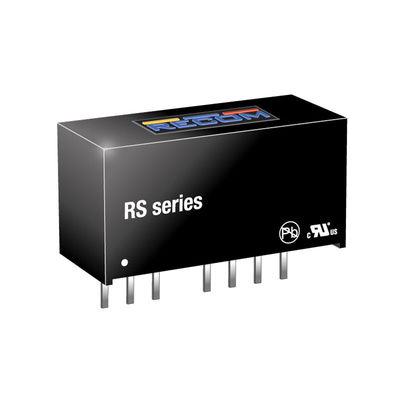

Recom 2W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RS Series

High power-density, an industrial temperature range of -40° to +85°C.
Additional features such as Remote-On-Off control make these converters ideal for highly sophisticated industrial designs.

2:1 wide input range
Regulated outputs
1kVdc isolation
Continuous short circuit protection
Low noise
UL94V-0 package material
83% efficiency
SIP 8 package

Note

Operating temperature is without derating.

Standards

EN60950-1

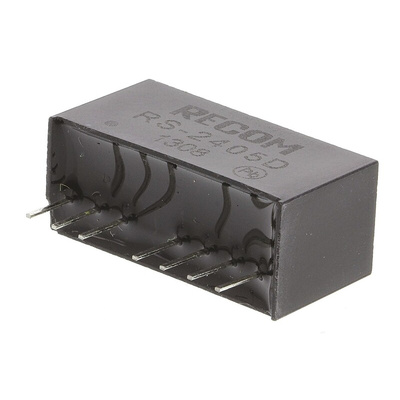

RECOM DC-DC Converter, Dual Output, SIP Package - RS Series - RS-2405D

It's time to step down your search for a device that changes voltage, thanks to this DC-DC converter from RECOM. The versatile unit handles input voltages between 18 and 36V DC. By reliably delivering 5V DC, it keeps your low-power applications running without a hitch. Inbuilt continuous short-circuit and overload protection stops your system from being overwhelmed by hazardous electrical surges, cutting the risk for damage. For a safety boost, this converter is encased in self-extinguishing material that stops burning inside ten seconds in the event of a fire.

• 0.5% line and load regulation to support consistent performance
• Broad operating temperature range of -40°C to +85°C to withstand harsh industrial settings
• Light 4.7g weight prevents unnecessary load and minimises strain on your infrastructure
• High mean time between failures of 1.398 million hours for long-term reliability

Applications

• Transportation industry
• Consumer electronics
• Mechanical workshops

How big is this unit?

Thanks to compact dimensions of 21.8 (L) x 9.2 (W) x 11.1mm (H), this is a space-efficient option.

What style of mounting does this converter use?

The unit can be through-hole mounted to create a strong connection that's secure, even in high-vibration environments.
