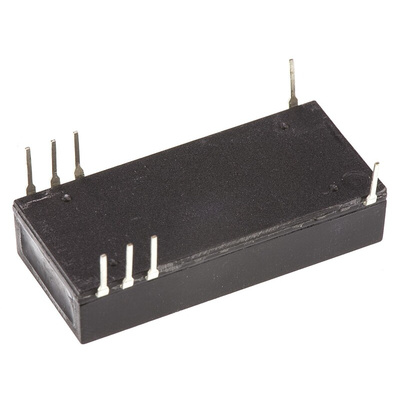

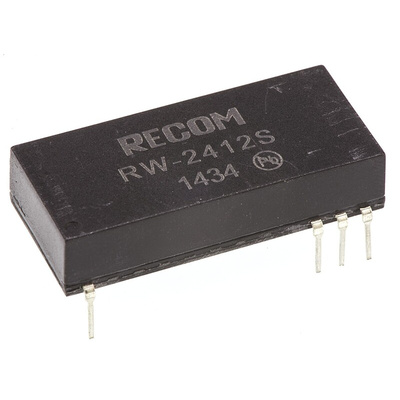

RW-2412S, Recom RW DC-DC Converter, 12V dc/ 250mA Output, 18 → 36 V dc Input, 3W, Through Hole, +80°C Max Temp -40°C Min, Преобразователь

RECOM DC-DC Converter, Single Output, 12V DC Output Voltage - RW Series - RW-2412S

Looking for a device to deliver stable power to your equipment? Select this DC-DC converter from RECOM for the job. Its wide input voltage range between 18 and 36V DC makes it a versatile option, while an output voltage of 12V DC keeps your low-power applications running without a hitch. Continuous short-circuit protection kicks electrical hazards to the kerb, so you get enhanced safety. As straightforward through-hole mounting establishes a secure connection to your board, you can count on this device to hold its own in shaky situations.

Features & Benefits

• Compact dimensions of 32.26 (L) x 14.73 (W) x 7mm (H) to maximise space on your PCB
• Line regulation of +0.2% for a steady output
• High efficiency of 84% means minimal energy is wasted as heat
• Performs reliably in harsh conditions, thanks to its broad operating temperature range of -40°C to +80°C

Applications

• Food and beverage production
• Industrial power supplies
• Factory automation

What's the power rating of this DC-DC converter?

It has a power rating of 3W, so it's a suitable choice for low-power applications.
