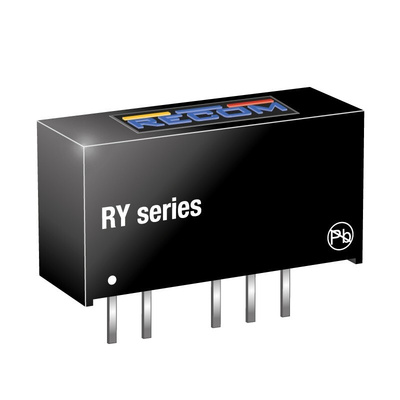

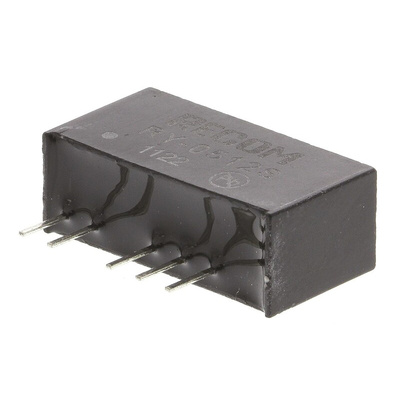

RY-0512S, Recom RY DC-DC Converter, 12V dc/ 84mA Output, 4.75 → 5.25 V dc Input, 1W, Through Hole, +70°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 1kV DC Isolation, 66% Efficiency - RY Series - RY-0512S

Step up to a powerful energy solution with this DC-DC converter from RECOM. It's designed to take an input voltage between 4.75 and 5.25V DC and increase it to an output of 12V DC to power a compatible appliance. The device is isolated, providing an additional layer of safety for personnel and equipment. Thanks to through-hole mounting and a depth of just 10.2mm, you can easily add it to a busy PCB.

Features & Benefits

• 1W output suitable for low-power applications
• Fully encapsulated design for protection from environmental contaminants
• Broad operating temperature range of -40°C to +70°C suits challenging conditions
• Constant voltage with load regulation of ±1%
• Output current of 84mA provides reliable power to your components

Applications

• Automotive manufacturing
• Industrial automation equipment
• Lighting systems

How big is this DC-DC converter?

It has compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (D), which is ideal for PCBs where space is at a premium.

Can I control the converter remotely?

Yes, it has a control pin that enables you to turn it on and off remotely.
