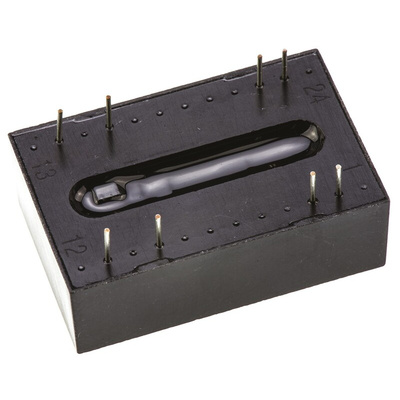

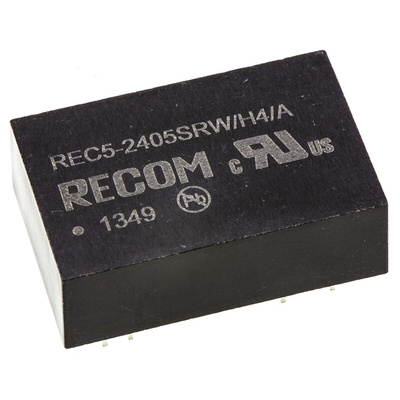

REC5-2405SRW/H4/A, Recom REC5 DC-DC Converter, 5V dc/ 1A Output, 18 → 36 V dc Input, 5W, Through Hole, +75°C Max Temp -25°C Min Temp, Преобразователь

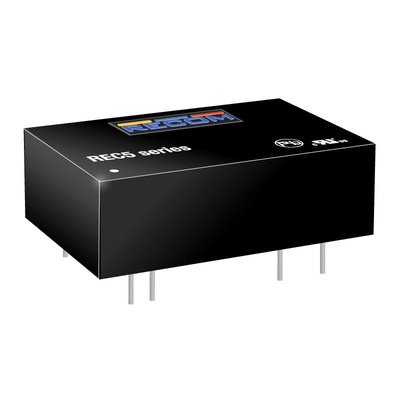

Recom 5W DIP Single/Dual Output Regulated Isolated DC-DC Converter - REC5-H4/A Series

5W DIP24 Package
2:1 wide range input
Regulated output
4kV(dc) Isolation
0.2% line regulation
Continous short circuit protection
UL94V-0 package material
Typical efficiency to 85%

Note

Operating temperature is without derating.

Standards

EN60950-1, UL60950-1, EN60601-1

RECOM DC-DC Converter, 5V DC Output Voltage, ±2% Output Voltage Accuracy - REC5 Series - REC5-2405SRW/H4/A

Need a device that provides a steady DC voltage to your equipment? Select this DC-DC converter from RECOM. It has an isolation voltage of 4000V DC, so it can withstand short-term exposure to high voltages without damage. To handle large start-up loads, the unit can boost its rated power by up to 140% for short periods of time. You can be sure of enhanced safety as a non-conductive plastic casing provides protection against electric shocks. An output voltage of 5V DC makes this an ideal choice for supplying power to low-voltage devices.

Features & Benefits

• Compact dimensions of 32 (L) x 20.3 (W) x 10.2mm (H) to maximize space in your setup
• Mean time between failures of 850,000 hours at +25°C for long-lasting performance
• Light weight of 13g to put minimal strain on your system
• Output voltage accuracy of ±2% for reliability

Applications

• Electronic appliances
• Medical devices
• Smart environment control

Can I use this device in harsh conditions?

Yes. This unit has a wide operating temperature range between -40°C and +75°C, so it's suitable for use in harsh conditions.
