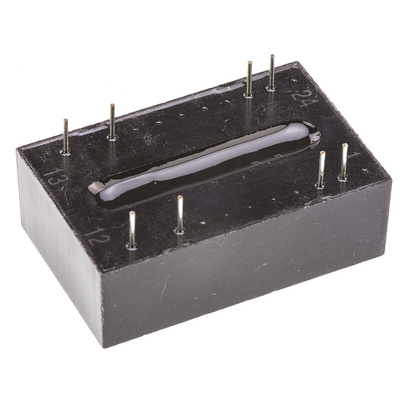

REC5-2412DRW/H4/A, Recom REC5 DC-DC Converter, ±12V dc/ ±210mA Output, 18 → 36 V dc Input, 5W, Through Hole, +75°C Max Temp -25°C, Преобразователь

RECOM DC-DC Converter, 4kV DC Isolation Voltage, 2 Outputs - REC5 Series - REC5-2412DRW/H4/A

Need to iron out your voltage supply? Keep things running smoothly with this DC-DC converter from RECOM. It's compatible with a wide input voltage range between 10 and 36V DC and provides a stable and regulated 12V DC output. This helps to keep equipment running without a hitch. Thanks to the unit's high isolation of 4kV DC, you can rest assured dangerous input voltages are safely handled before reaching your machines. You can use this converter in a broad operating temperature range between -40°C and +75°C with only free-air convection cooling. As there's no need for a fan, this helps to maximise packing efficiency on your circuit board.

Features & Benefits

• Mean time between failures of over 8.5 million hours when operating at +25°C, for long-term use
• Light weight of 13g puts minimal strain on its mounting surface
• Non-conductive casing protects against electric shocks

Applications

• Data and telecommunication centres
• Factory automation
• Hospitals and medical facilities
• Oil and gas industries

How much power does this DC-DC converter use when there's no output load?

A maximum no-load power consumption of 300mW makes the product energy-efficient, as minimal power is used when it's not hard at work.
