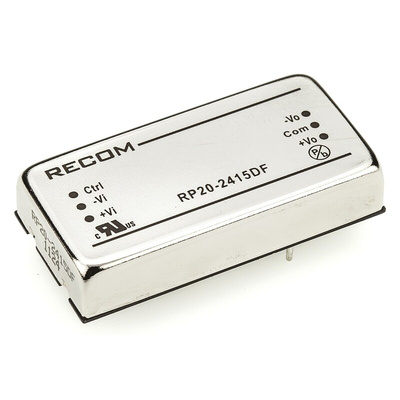

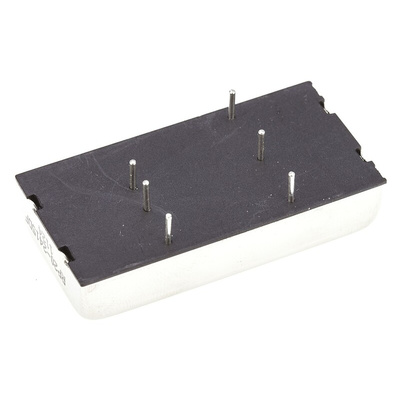

RP20-2415DF, Recom RP20-F DC-DC Converter, ±15V dc/ ±667mA Output, 18 → 36 V dc Input, 20W, Through Hole, +85°C Max Temp, Преобразователь

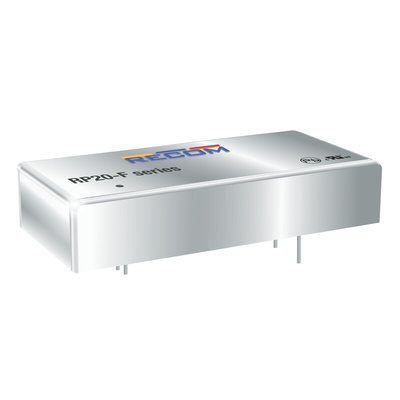

Recom 20W Single/Dual Output Regulated Isolated DC-DC Converter - RP20-F Series

Regulated output
Extremely compact design - 20W in a 50.8 x 25.4mm package
L-C input filters
International safety standard design
Six sided continuous shield
High efficiency (88% typ)
Isolation voltage 1.6kVdc
Industrial standard package size
2:1 wide input range
Input voltage ±1% max
Nickel coated copper case

Note

Operating temperature is with derating.

Standards

EN60950, UL1950, CSA950

Approvals

UL recognised

RECOM DC-DC Converter, 1.6kV DC Isolation Voltage, 2 Outputs - RP20-F Series - RP20-2415DF

Mix and match electrical loads without buckling your system with this DC-DC converter from RECOM. It steadies out your power supply by reducing an input between 18 and 36V DC to an output of +15V DC, so makes it easy to stabilise your voltage source. To prevent miscommunication between sensitive devices, the unit is isolated, which stops distracting crosstalk in its tracks. You can rely on this component in harsh operating conditions thanks to its wide operating temperature range of -40°C to +85°C.

• Quick start-up time of 1ms means it reacts almost instantly to voltage changes
• Protected against overvoltage, overload and short circuits to reduce the risk of damage caused by electrical faults
• Flame-retardant housing for safety in the event of a fire
• Efficiency of 87% for minimal power loss during switching

Applications

• Industrial control rooms
• Oil and gas industries
• Pharmaceutical manufacturing
• Aerospace engineering

Do I need to reset this converter after a short circuit?

No, this unit automatically recovers after a short circuit has passed through, saving you time and effort.
