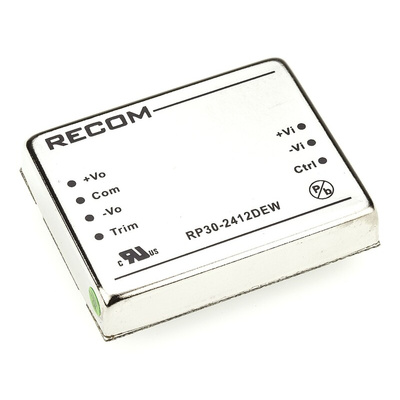

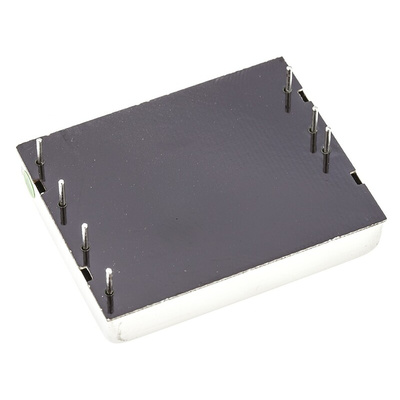

RP30-2412DEW, Recom RP30-EW DC-DC Converter, ±12V dc/ ±1.25A Output, 10 → 40 V dc Input, 30W, Through Hole, +85°C Max Temp, Преобразователь

Recom 30W Single/Dual and 49W Triple Output Regulated Isolated DC-DC Converter - RP30-TA Series

Regulated outputs
L-C input filter
Output current up to 8A
Six sided continuous shield
High efficiency
Isolation voltage 1.6kV
Industrial standard package size
4:1 wide input range
Input voltage ±1% max
Nickel coated copper case

Note

Operational temperature is with derating.

Standards

EN60950, UL1950, CSA950

Approvals

UL recognised

RECOM DC-DC Converter, ±1000μF Maximum Capacitive Load, 1GΩ Minimum Isolation Resistance - RP30-EW Series - RP30-2412DEW

Need to deliver glitch-free power to PCB-linked equipment? Reach for this DC-DC converter from RECOM. It smooths out inputs ranging from 10 to 40V to deliver a balanced ±12V output that's just right for your components. For improved safety, it creates an isolation barrier of up to 1.6kV between the input and output, preventing damage caused by power surges. The converter's nickel-plated copper case is tough enough to handle the strain that comes with harsh industrial environments. Thanks to a 30W power output, it's a reliable choice for your medium-duty to heavy-duty applications.

• Wide operating temperature range between -40°C and +85°C for use in challenging conditions
• Remote on/off function eliminates the need for manual operation
• Efficiency of 84% for high productivity and minimal energy waste
• Mean time between failures of 1,315,000 hours for long-term performance

Applications

• Military equipment
• Telecommunications systems
• Machine building

What are the dimensions of this DC-DC converter?

This unit has compact dimensions of 50.8 (L) x 40.6 (W) x 10.2mm (H), which makes it a good fit for setups where space is limited.
