RP30-2415DEW, Recom RP30-EW DC-DC Converter, ±15V dc/ ±1A Output, 10 → 40 V dc Input, 30W, Through Hole, +85°C Max Temp -40°C, Преобразователь

Recom 30W Single/Dual and 49W Triple Output Regulated Isolated DC-DC Converter - RP30-TA Series

Regulated outputs
L-C input filter
Output current up to 8A
Six sided continuous shield
High efficiency
Isolation voltage 1.6kV
Industrial standard package size
4:1 wide input range
Input voltage ±1% max
Nickel coated copper case

Note

Operational temperature is with derating.

Standards

EN60950, UL1950, CSA950

Approvals

UL recognised

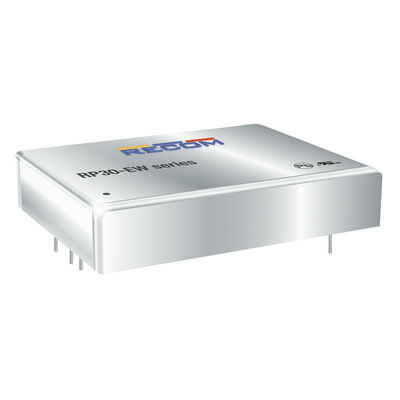

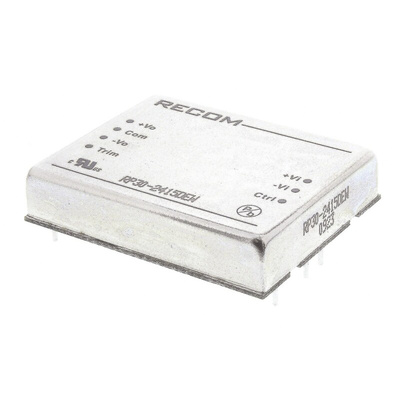

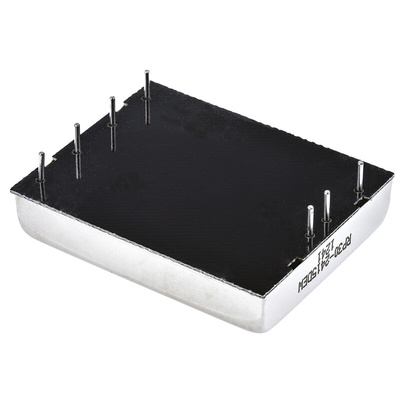

RECOM DC-DC Converter, 10 to 40V DC Input Voltage Range, +15V DC Output Voltage - RP30-EW Series - RP30-2415DEW

Put a steadying hand on your power supply with this DC-DC converter from RECOM. It steps down an input voltage range between 10 and 40V DC to provide a stable output voltage of ±15V DC to your device. A built-in LC input filter keeps noise to a minimum, so you can be sure of clear signal transmissions. Thanks to its efficiency rating of 86%, this unit wastes little energy as heat and runs reliably cool.

Features & Benefits

• Typical start-up time of 10ms for speedy voltage conversion
• Dual-output design for use with two devices at once
• Output voltage accuracy of ±1% for precise performance
• Compact dimensions of 50.8 (L) x 40.6 (W) x 10.2mm (H) to maximise packing space on your PCB

Applications

• Medical technology
• Communications equipment
• Digital cameras
• Electrical engineering

What protective features does this converter have?

This converter comes with short-circuit protection that features automatic recovery, so you can rest assured that it quickly picks up where it left off after a fault. Integrated undervoltage lockout and overvoltage protection are also on hand to prevent electrical damage.

Datasheet

Selection Guide - WE POWER YOUR PRODUCTS
