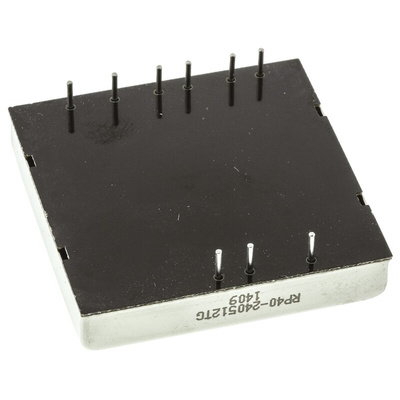

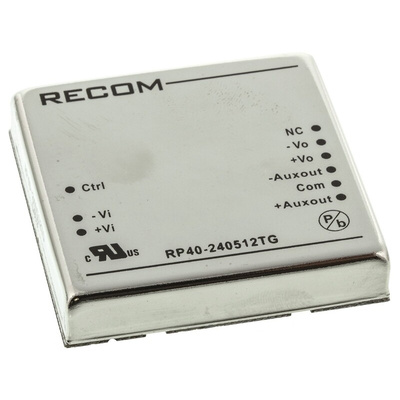

RP40-240512TG, Recom RP40-G DC-DC Converter, 5V dc/ 6 A, ±400mA Output, 18 → 36 V dc Input, 40W, Through Hole, +85°C Max Temp, Преобразователь

Recom 40W Single/Triple Output Regulated Isolated DC-DC Converter - RP40-G Series

2:1 input range
Regulated outputs
L-C input filters
1·6kV input/output isolation
Very high efficiency up to 89%
Control pin for remote ON/OFF
Hiccup automatic short circuit protection
Overvoltage protection
Shielded metal case with insulated base plate
Industry standard package

Note

Operational temperature is with derating.

Standards

EN60950, UL1950

Approvals

UL recognised

RECOM Triple Output DC-DC Converter, 18 to 36V DC Input, 5V DC Output - RP40-G Series - RP40-240512TG

Step down an 18 to 36V DC supply to a 5V DC output with this converter from RECOM. As an isolated converter with an isolation voltage of 1.6 kV DC, it separates the output from dangerous voltages on the input, making it safer to work with. The isolation also means you can use it to break up ground loops, which can benefit circuits that are sensitive to noise. Through-hole mounting provides a strong and reliable connection. The comes in an industry-standard package for maximum compatibility with your existing setup.

Features & Benefits

• Operating temperature range of -40°C to +85°C for use in harsh industrial environments
• Triple output allows you to power 3 separate circuits
• Hiccup automatic short circuit protection guards against damage caused by overcurrents
• High efficiency of up to 89% saves energy
• Shielded metal case with insulated base plate guards against electromagnetic interference

Applications

• Op amps
• Micro controllers
• Integrated circuits

What's through-hole mounting?

With through-hole mounting, a components' leads are placed through holes drilled into a bare PCB. While it has been replaced to a large degree by surface-mount technology, through-hole mounting remains a popular option for products that need a strong and reliable connection.

UL E196683

Datasheet
