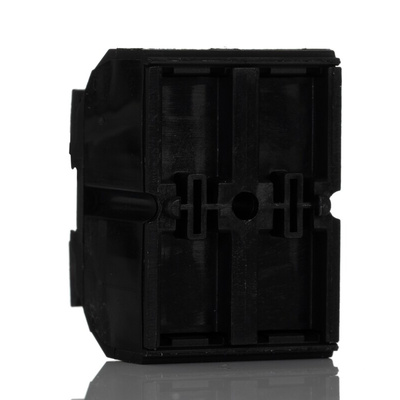

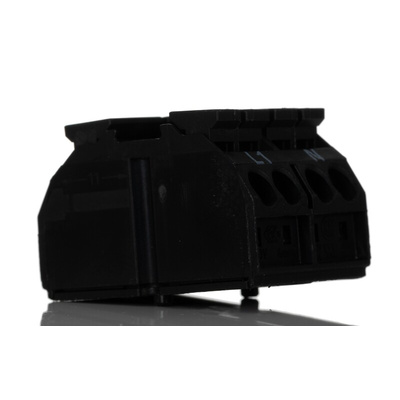

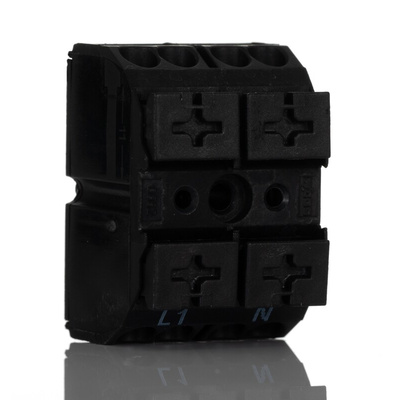

862-1552, Wago 862 Series Terminal Strip, 2-Way, 32A, 20 → 12 AWG, Wire, Push-In Cage Clamp Termination

Wago Terminal Strip, 8 Connection Points, Screw Mounting - 862 Series - 862-1552

Make wiring your electrical switches and relays a breeze with this terminal strip from Wago. It's designed to fasten easily onto a chassis using a 3mm screw and nut. Thanks to the side entry, you can adjust your wiring without disturbing the connections. This strip features push-in CAGE CLAMP® terminals, so you don't need any complex tools to get the job done. The assembly is a doddle to actuate by simply pushing the built-in button.

Features & Benefits

• Eight connection points give you plenty of room to fit multiple wires
• Accommodates wire sizes from 20 to 12AWG for flexibility
• Current rating of 32A means it's suitable for use in high-power systems

Applications

• Communications equipment
• Aviation engineering
• Robotics
• Measuring instruments

What size is this strip?

This strip has compact external dimensions of 22.3 (H) x 24 (W) x 35mm (D), so it fits easily in cramped spaces.

What material is this strip made from?

The housing is made from durable PA66, so you can count on it to stand up to impact and wear in harsh environments.

CSA LR018677

UL E45172

ENEC 136402-01

Datasheet
