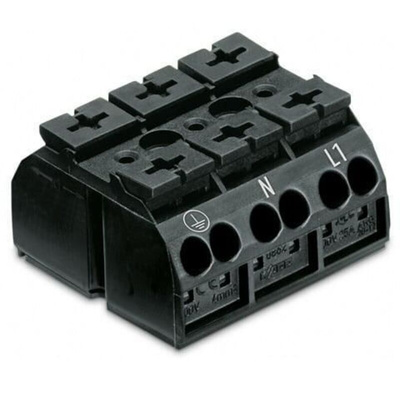

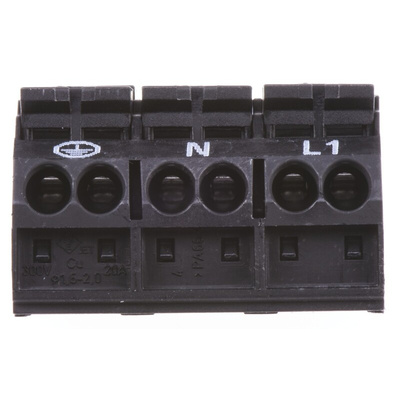

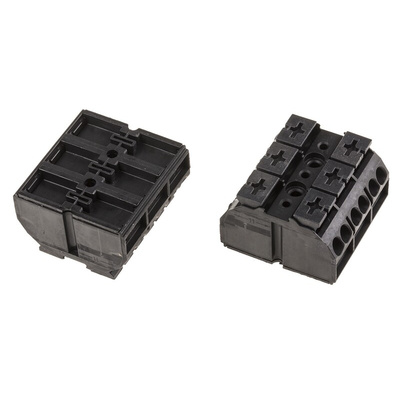

862-1503, Wago 862 Series Terminal Strip, 3-Way, 32A, 20 → 12 AWG, Wire, Push-In Cage Clamp Termination

862 Series

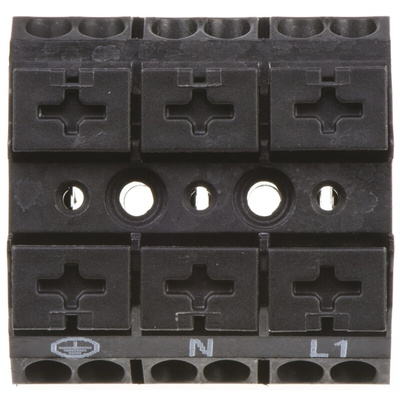

For fixing screws 3mm Ø or for self tapping screw 2.9mm Ø from the top without marking
Offset 10-11mm
4 conductor device connector

Available in 2, 3, 4 and 5 pole configurations:
RS 4751471 - 4 Conductor Panel Mount Terminal Strip, 2 Pole (L1-N, without ground contact)
RS 4751487 - 4 Conductor Panel Mount Terminal Strip, 3 Pole (PE-N-L1, without ground contact)
RS 4751493 - 4 Conductor Panel Mount Terminal Strip, 4 Pole (PE-N-L1-L2, without ground contact)
RS 4751500 - 4 Conductor Panel Mount Terminal Strip, 5 Pole (PE-N-L1-L2-L3, without ground contact)

Wago Terminal Strip, 6kV Rated Impulse Voltage, Side Entry Wiring - 862 Series - 862-1503

Latch onto wires in your panel using this terminal strip from Wago. This 3-way unit has four connection points per potential, giving you enough room to house up to 12 wires. It fits cable sizes ranging from 20 to 12AWG for a free hand in your wiring. The product's simple push-in cage clamp termination design lets you fasten your wires to it without any tools. A rated impulse voltage of 6kV means this strip can safely bear the brunt of current surges in your electrical system.

Features & Benefits

• Current rating of 32A enables safe use in high-power systems
• Copper conductors are highly conductive for reliable performance
• Pluggable mounting design makes for convenient installation

Applications

• Electrical engineering
• Oil and gas industry
• Packaging facilities
• HVAC systems

What's this terminal strip made from?

It's made from flame-retardant PA, making it safe to use in places at risk of fire.

How do I activate the cables in this terminal strip?

Thanks to the integrated push button actuation, you can turn on transmissions from the cable using your fingers or a standard screwdriver.

CSA LR018677

UL E45172

ENEC 136402-01

Series 862 Description and Handling Data Sheet
