862-1504, Wago 862 Series Terminal Strip, 4-Way, 32A, 20 → 12 AWG, Wire, Push-In Cage Clamp Termination

862 Series

For fixing screws 3mm Ø or for self tapping screw 2.9mm Ø from the top without marking
Offset 10-11mm
4 conductor device connector

Available in 2, 3, 4 and 5 pole configurations:
RS 4751471 - 4 Conductor Panel Mount Terminal Strip, 2 Pole (L1-N, without ground contact)
RS 4751487 - 4 Conductor Panel Mount Terminal Strip, 3 Pole (PE-N-L1, without ground contact)

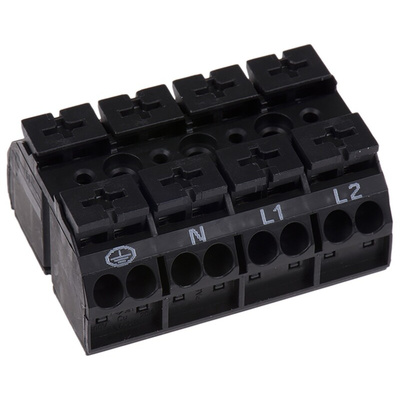

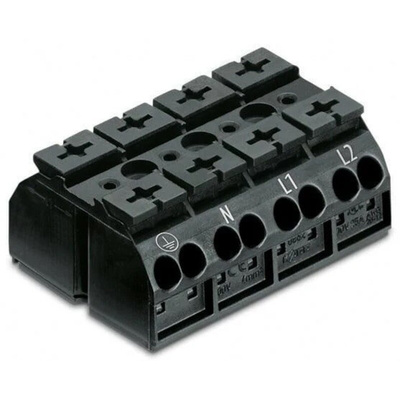

RS 4751493 - 4 Conductor Panel Mount Terminal Strip, 4 Pole (PE-N-L1-L2, without ground contact)
RS 4751500 - 4 Conductor Panel Mount Terminal Strip, 5 Pole (PE-N-L1-L2-L3, without ground contact)

Wago Terminal Strip, 20 to 12AWG Wire Size, Side-Entry Wiring - 862 Series - 862-1504

Connect wires to your board in a jiffy using this terminal strip from Wago. Its push-in, cage clamp termination method lets you insert them without any tools and secures them firmly in place. A wire size range of 20 to 12AWG gives you the scope to link up cables of different dimensions. This 4-way device has sufficient space for multiple data and signal transfers to your circuit. Its copper conductors have high electrical conductivity to ensure reliable power transmissions.

Features & Benefits

• Screw mounting for firm installation
• Flame-retardant polyamide body for fire safety
• Halogen-free for a reduced risk of environmental contamination if heated
• Side-entry wiring enables adjustment without disturbing other components
• Supplied in a pack of 5 to keep stock on hand

Applications

• Transportation industry
• Electrical engineering
• Computing
• Agricultural equipment

What's the current capacity of this terminal strip?

It has a current capacity of up to 32A, making it a safe wiring choice for use in heavy-duty equipment.

Does this terminal strip have test points?

Yes, it has built-in test points for straightforward checks with a 2mm (Ø) test plug.

CSA LR018677

UL E45172

ENEC 136402-01
